SEK Acoustics 2, supplement to Acoustics 1

P9901-5T
Price on request
Recycle Seal

This student experiment box requires accessories!

Student experiment equipment set for carrying out 21 experiments from mechanics - acoustics on the topic:

  • Sound propagation (2 experiments)
  • Sound and our body (1 experiment)
  • Standing waves (2 experiments)
  • Resonance and reflection (1 experiment)
  • Wave phenomena (3 experiments)
Outstanding features:
  • To demonstrate sound insulation: high-quality ➜ Earmuffs - for use on the ear or with the microphone!
  • Included in our set: a complete, compact ➜ Resonance tube for the student experiment, incl. holder and piston
    ⇒ ideal for demonstrating standing waves and determining the speed of sound
The SEK student experiments system by NTL:
  • Topic-oriented structure and division according to physical sub-areas
  • All areas of physics are covered
  • Didactically and thematically sensible division of the sub-areas into several boxes
  • Each part in the student box can also be ordered separately and purchased individually if required
  • Student experiment instructions based on the curriculum and ideally matched to the composition of the boxes
  • Clear arrangement of the box contents: only 1 material layer in all boxes, without confusing intermediate shelves
  • Extremely stable storage boxes, non-slip stackable - and made from 100% recycled material

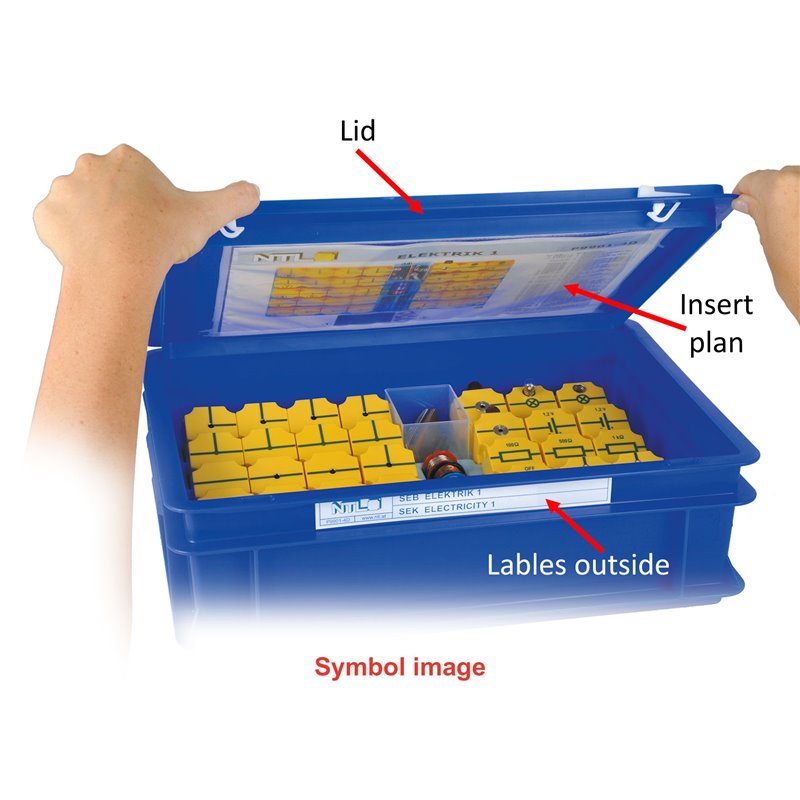

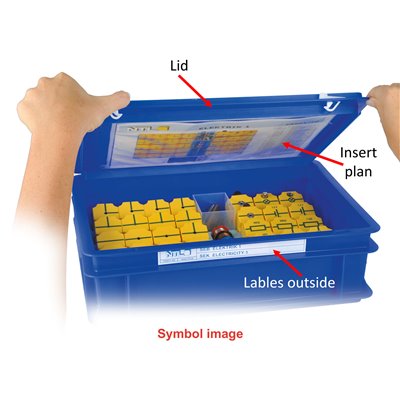

The standard scope of delivery of our SEK contains:
  • Complete equipment set for a group of pupils
  • Storage box incl. lockable lid
  • Individually shaped box insert
  • Clear box storage plan in the lid

The experiment manuals are not included with our SEK!

You will find the corresponding experiment manual in the accessories tab for this SEK.

Boxeneinlage für P9901-5T SEB Akustik 2, Ergänzung zu Akustik 1 (DEU)

P9901-5T Boxeneinlageplan (PDF) (333.78KB)

Plan for storage of all components for P9901-5T SEK Acoustics 2, supplement to acoustics 1 (ENG)

P9901-5T Box insert plan (PDF) (333.29KB)

Plán rozloženia pre P9901-5T ŽEM Akustika 2, doplnenie Akustiky 1 (SK)

P9901-5T Plán uloženia (PDF) (198.58KB)

List of all experimental topics that can be carried out with this set (ENG)

P9901-5T Index experiments (PDF) (90.29KB)

Auflistung aller Versuchsthemen, welche mit diesem Set durchgeführt werden können (DEU)

P9901-5T Index Versuchsthemen (P (94.22KB)

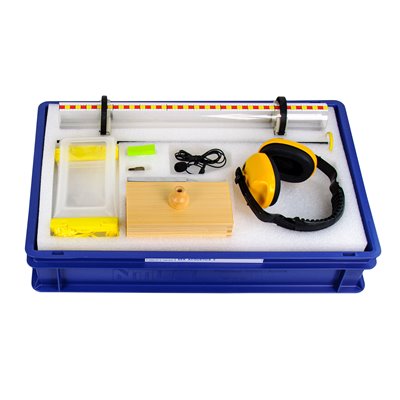

The SEK Acoustics 2 consists of the following contents:

Quantity Item no. Description
1x DW100-1A Tuning fork, 440 Hz, with resonance case NTL-Item: DW100-1A Tuning fork, 440 Hz, with resonance case
1x DW110-1L Tuning fork rider NTL-Item: DW110-1L Tuning fork rider
1x P1350-2K Resonance tube "compact"
- Ideal for demonstrating standing waves and for determining the speed of sound
- Acrylic glass tube with attached block and cm scale (graduation: 5 mm)
- Length L = 500 mm, outer diameter Da = 50 mm		 NTL-Item: P1350-2K Resonance tube "compact"
2x P1351-2H Holder for resonance tube "compact" NTL-Item: P1351-2H Holder for resonance tube "compact"
1x P1350-2S Piston for resonance tube "compact"
- Matching piston for the resonance tube "compact"
- Disc with felt pad on a push rod (length L = 500 mm)		 NTL-Item: P1350-2S Piston for resonance tube "compact"
1x DG270-1B Labels adhesive, coloured, set of 100 pcs. NTL-Item: DG270-1B Labels adhesive, coloured, set of 100 pcs.
2x P4982-1C Case for mobile, waterproof NTL-Item: P4982-1C Case for mobile, waterproof
1x C7612-2G Earmuffs
- High-quality ear muffs for all experiments on noise protection
- Light and comfortable to wear with adjustable cup position
- Attenuation: 27.6 dB
- Test marks: ANSI/CE/UKCA EN352-1		 NTL-Item: C7612-2G Earmuffs
1x DW331-1M Microphone for mobile NTL-Item: DW331-1M Microphone for mobile
1x P7907-5T Box insert "Acoustics 2" NTL-Item: P7907-5T Box insert "Acoustics 2"
1x P7806-1G Storage box - lid, II, with fleece NTL-Item: P7806-1G Storage box - lid, II, with fleece
1x Box insert plan
2x Labels
3. Sound propagation
AKS 3.4b Sound propagation in liquids - 2 Photo of the experimental setup: AKS 3.4b Sound propagation in liquids - 2 Symbolic image of a PDF document
AKS 3.6 Sound insulation - for our hearing Photo of the experimental setup: AKS 3.6 Sound insulation - for our hearing Symbolic image of a PDF document
4. Sound and our body
AKS 4.1b Sound and body - directional hearing - 2 Photo of the experimental setup: AKS 4.1b Sound and body - directional hearing - 2 Symbolic image of a PDF document
5. Standing waves
AKS 5.1 Standing waves Photo of the experimental setup: AKS 5.1 Standing waves Symbolic image of a PDF document
AKS 5.2 Standing waves - speed of sound Photo of the experimental setup: AKS 5.2 Standing waves - speed of sound Symbolic image of a PDF document
6. Resonance and reflection
AKS 6.2 Resonance at two tuning forks Photo of the experimental setup: AKS 6.2 Resonance at two tuning forks Symbolic image of a PDF document
7. Wave phenomena
AKS 7.2a Interference - beat (2 tuning forks) Photo of the experimental setup: AKS 7.2a Interference - beat (2 tuning forks) Symbolic image of a PDF document
AKS 7.2b Interference - beat (1 tuning fork, 1 loudspeaker) Photo of the experimental setup: AKS 7.2b Interference - beat (1 tuning fork, 1 loudspeaker) Symbolic image of a PDF document
AKS 7.3 Doppler Effect - Acoustics Photo of the experimental setup: AKS 7.3 Doppler Effect - Acoustics Symbolic image of a PDF document
Required accessories:
Quantity Item no. Description
1x P9901-4T SEK Acoustics 1
- Basic student experiment equipment set for carrying out 21 fundamental experiments in mechanics (acoustics) on the following topics:
• Sound generation (4 experiments)
• Analysis of sound (9 experiments)
• Sound propagation (6 experiments)
• Sound and our body (2 experiments)
• Sound and our body (2 experiments)		 NTL-Item: P9901-4T SEK Acoustics 1
1x P9160-5T Experiment manual Acoustics, english
- Student workbook with 31 experiments on the topic "Mechanics - Acoustics"
- Matched to the student experiment boxes SEK Acoustics 1 and SEK Acoustics 2		 NTL-Item: P9160-5T Experiment manual Acoustics, english
1x Tablet or smartphone (iPadOS®, iOS®, Android™)
1x Possibly required: adapter cable for 3.5 mm jack plug
- If the smartphone or tablet used does not have a 3.5 mm jack connection, a corresponding adapter cable is required
- Due to the large number of different adapter solutions, we are unfortunately unable to offer an adapter here
1x Free app from RWTH Aachen University: phyphox® - physical phone experiments, available in the App Store® and on Google Play™

App Store IconGoogle Play Icon

Phyphox is a registered trademark of RWTH Aachen University in Germany, the EU, the U.S.A. and other countries. Android, Google Play and the Google Play logo are trademarks of Google LLC. Apple, the Apple logo and iPadOS are registered trademarks of Apple Inc. in the U.S.A. and other countries. App Store is a registered service mark of Apple Inc. iOS is a registered trademark of Cisco Systems Inc. in the U.S.A. and other countries.
