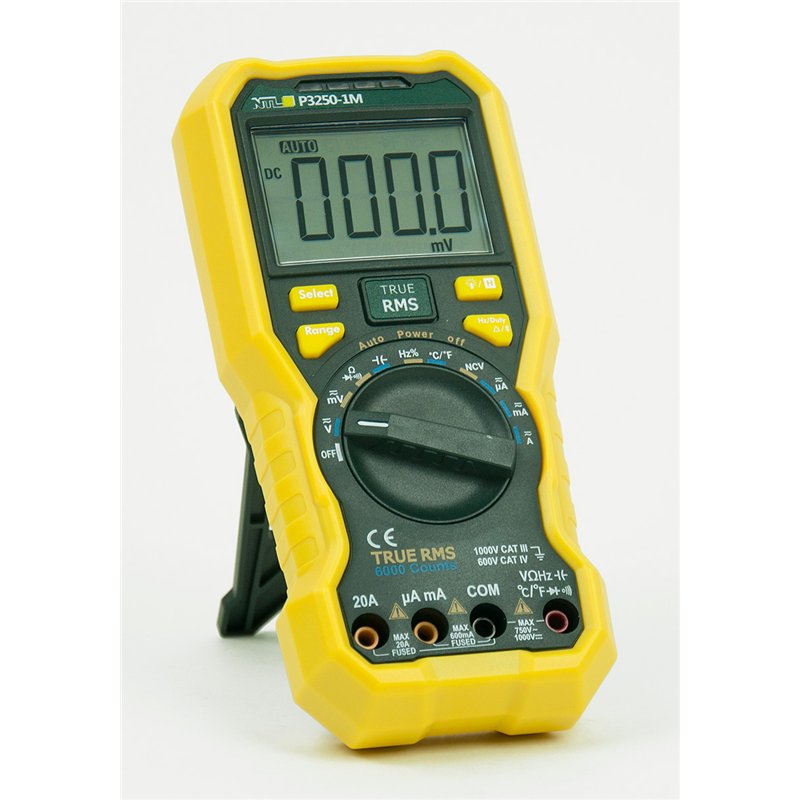

Multimeter digital “BT“, True RMS

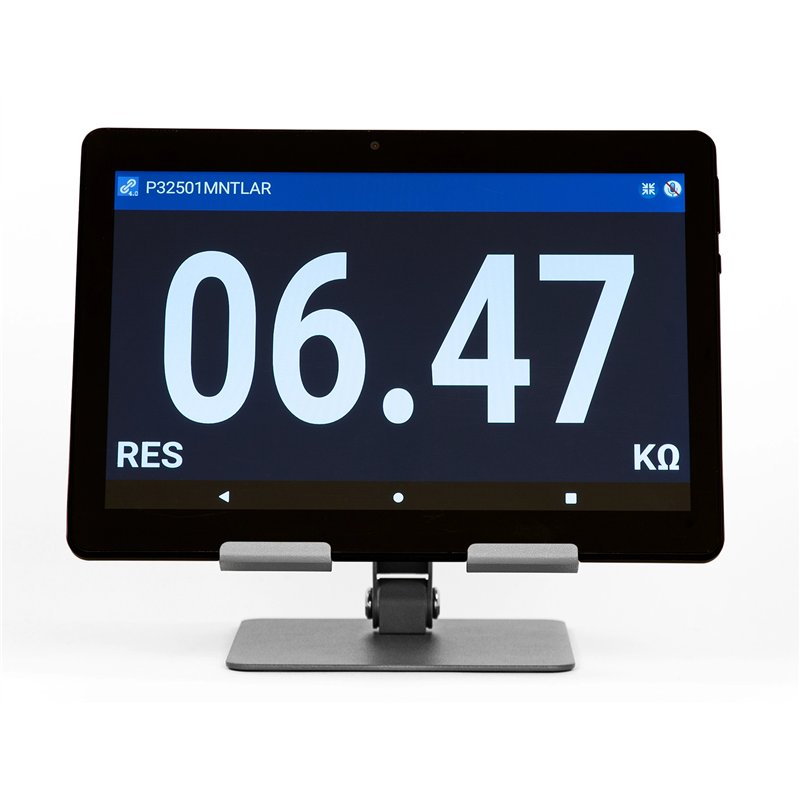

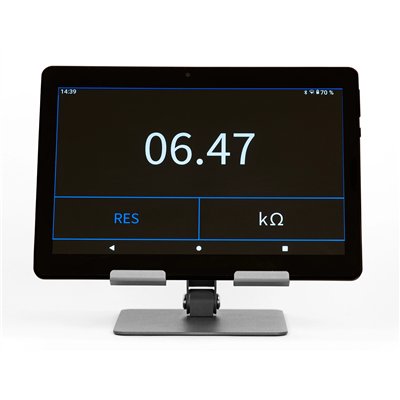

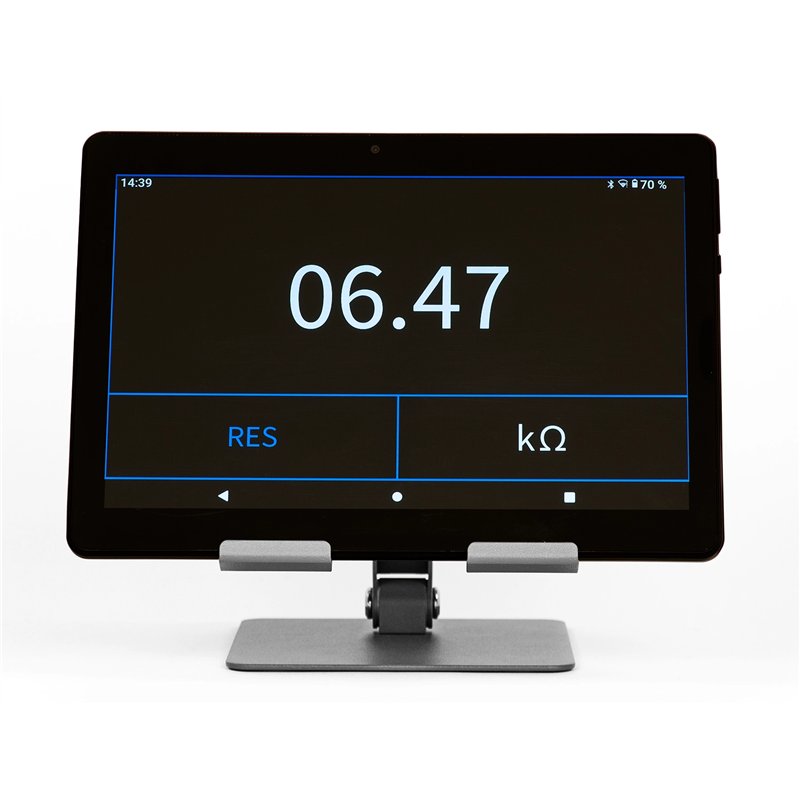

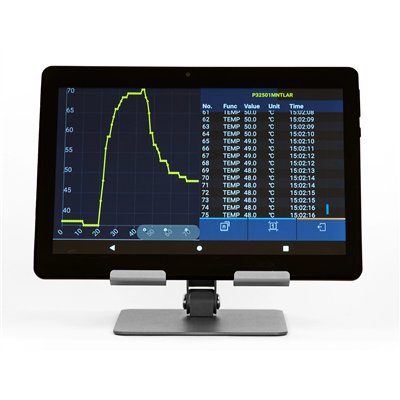

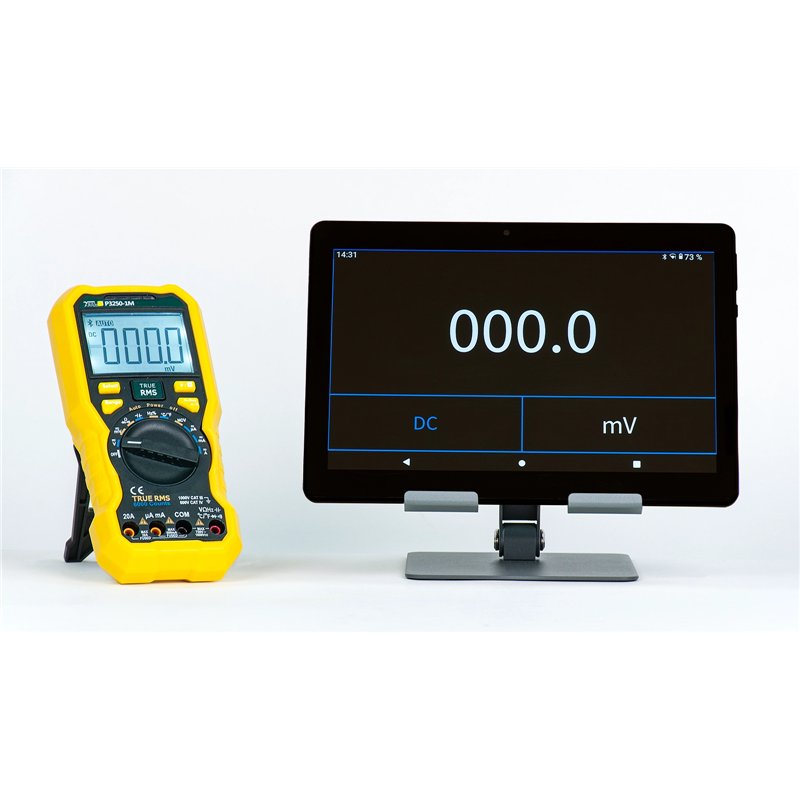

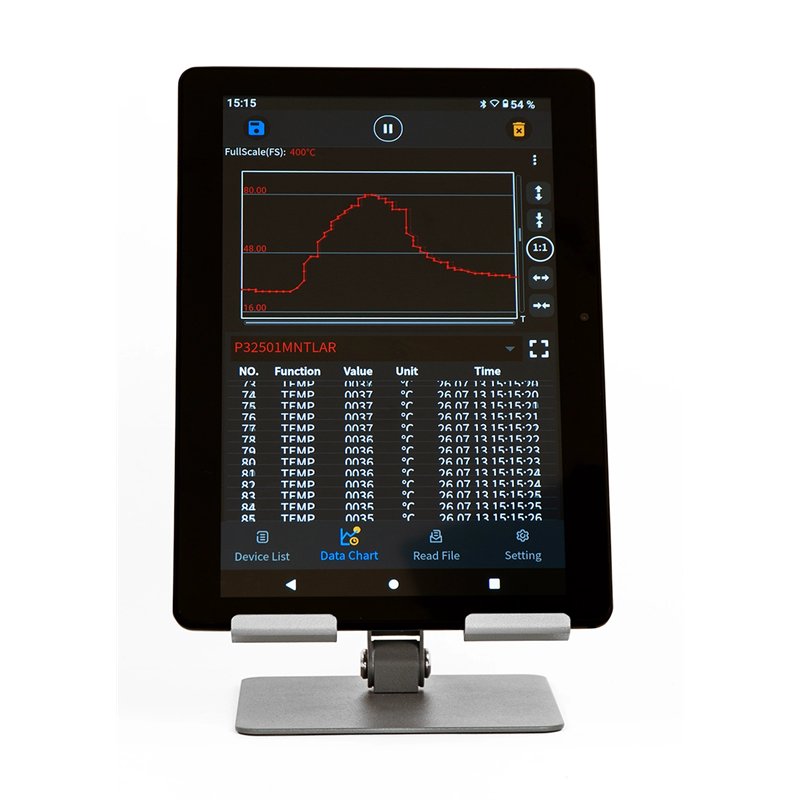

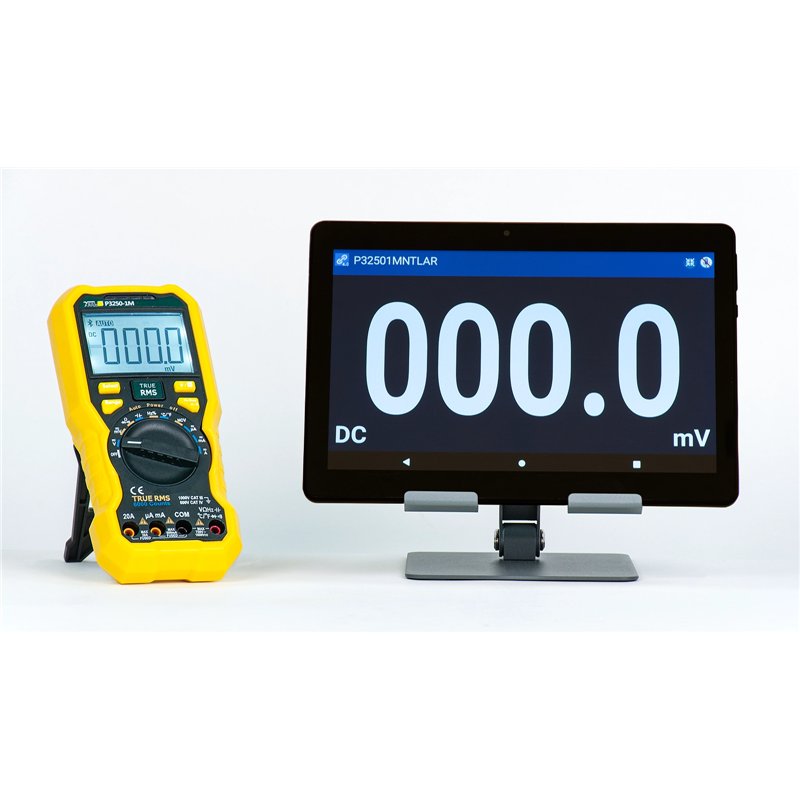

Professional multiple digital multimeter in safety category CAT IV with true RMS measurement; Bluetooth (4.0) data transmission enables measured values to be recorded on a tablet, cell phone or PC (with Bluetooth).The freely available apps for Android and iOS enable the following displays: - analog as a diagram - in tabular form (as a .CSV document) - digital (on a 10” tablet, the measured value is displayed in full screen mode in figures up to 65 mm high)

For measuring measuring ranges max. resolution
Voltage DC (V): 60.00 mV ... 1000 V 0.01 mV
Voltage AC (V): 60.00 mV ... 750 V 0.01 mV
DC current (A): 600.0 μA ... 20.00 A 0.1 μA
AC current (A): 600.0 μA ... 20.00 A 0.1 μA
Resistance (Ω): 600.0 Ω ... 60.00 MΩ 0.1 Ω
Capacitance (F): 60.00 nF ... 60.00 mF 0.01 nF
Frequency (Hz): 9.999 Hz ... 9.999 MHz 0.001 Hz
Temperature (°C/°F): -50 ... +400 °C 1 °C
-58 ... +752 °F 1 °F

Continuity test
Diode test

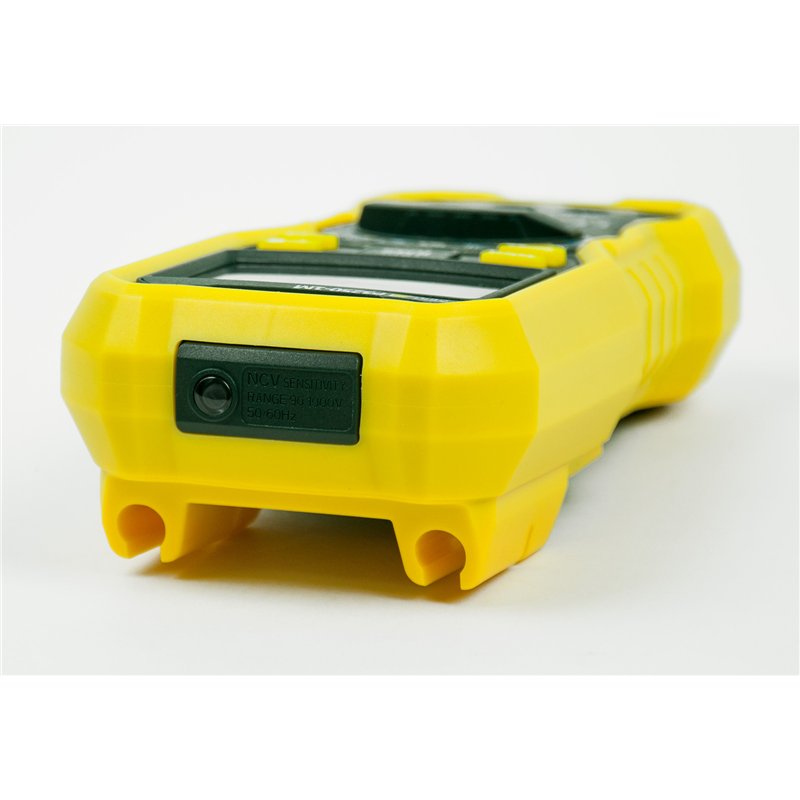

Non-contact voltage detection (NCV)

Further functions:
Automatic range selection, overload protection, data hold function, relative value, LCD backlight, integrated flashlight, battery indicator, automatic switch-off

Measurement type: True RMS
Safety category: CAT IV (up to 600 V) and CAT III (up to 1000 V)
Internal resistance: ≥ 10 MΩ
LCD size: 58.5 x 41 mm
Digit height: 24.5 mm

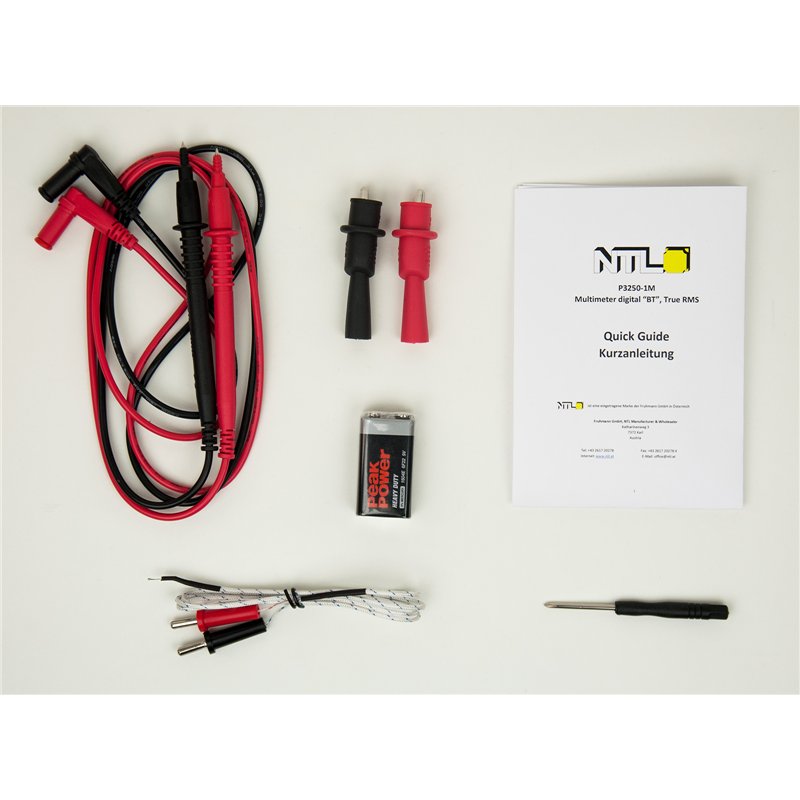

Included in the scope of delivery:

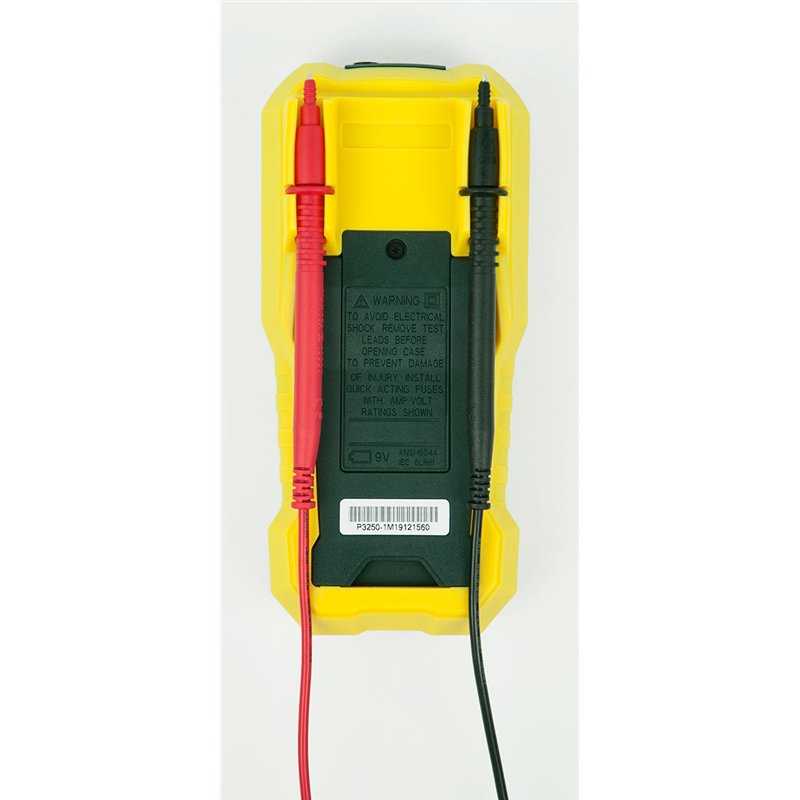

2 measuring cables, 2 crocodile clips insulated, temperature sensor, holster, screwdriver, technical instructions.

Power supply: 9V battery (6F22)
Fuse protection: 1 A (1000 V) and 15 A (1000 V)
Dimensions: 190 x 90 x 56 mm
Weight: approx. 368 g (without accessories)

additionally recommended:
P3249-1T Thermocouple with handle, for multimeter
