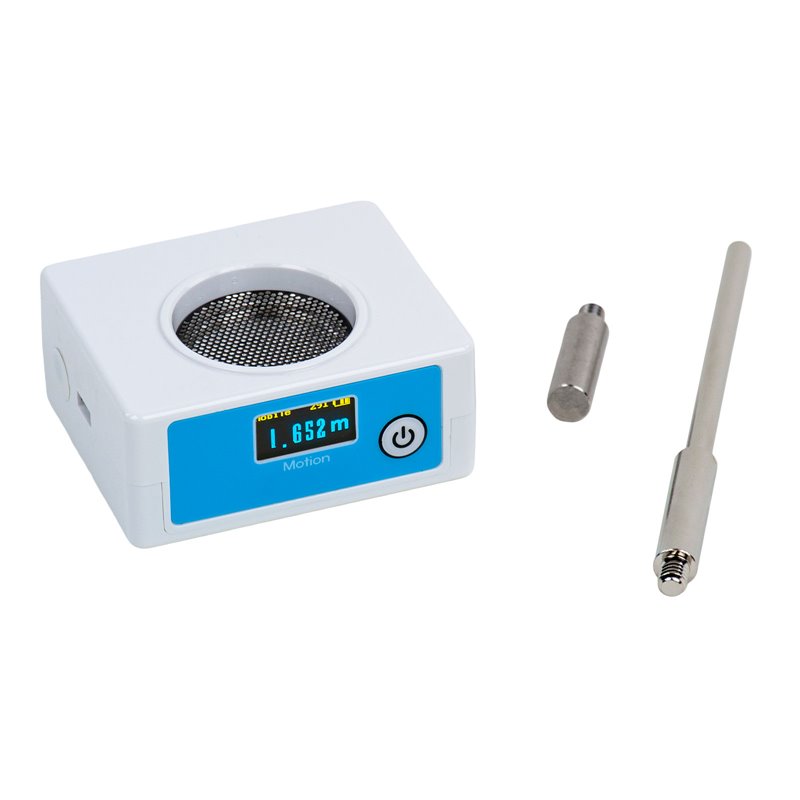

Sensor WLD, motion (distance), 15 … 600 cm

For measuring the distance to a (moving) object using ultrasonic waves.
For experiments on dynamics (linear motion), pendulum motion, gravitational acceleration (g determination), momentum and energy, and conservation of energy.

Measuring range: 15 … 600 cm
Resolution: 1 mm
Opening angle: 15° (in relation to the centre line)
Accuracy: ± 12 mm
Maximum sampling rate: 100 Hz
Measurement of the sensors: 66 x 80 x 36 mm
Delivery with support rod
