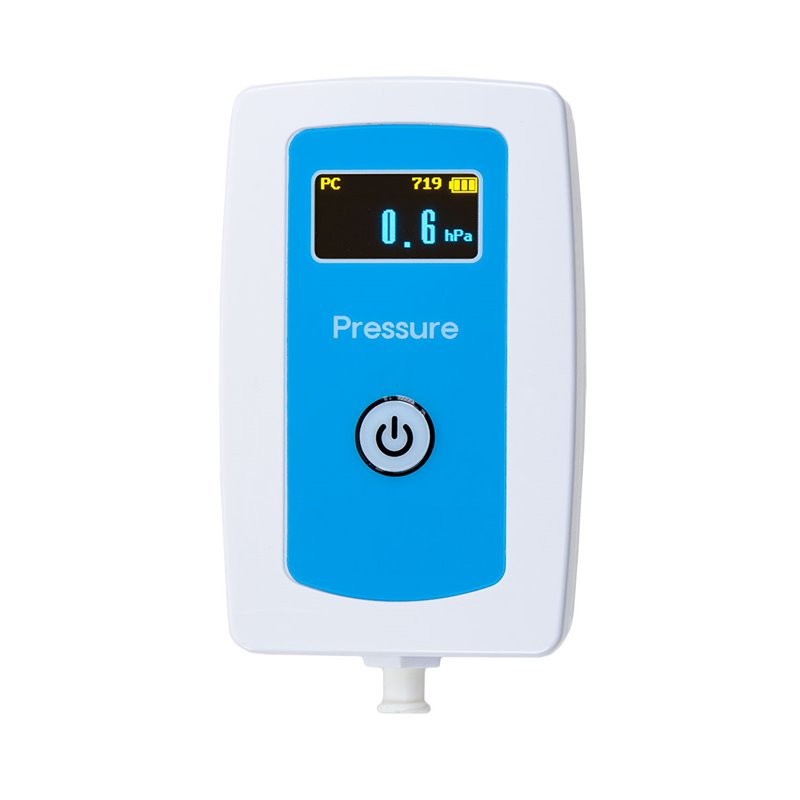

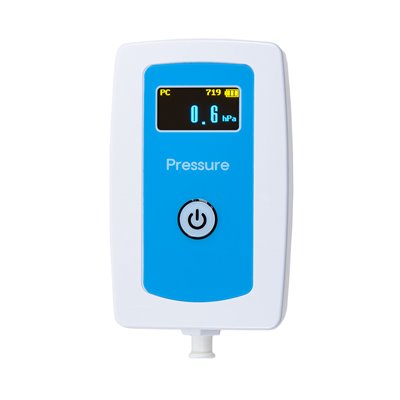

Sensor WLD, gas pressure, -1000 … +3000 hPa (rel)

For measuring the relative pressure of non-corrosive gases compared to ambient pressure.

- Boyle's law
- Principle of cloud formation
- Reaction speed depending on acid concentration
- Solubility of gases as a function of temperature

Measuring range: - 1000 ... +3000 hPa (relative)
Resolution: 0,6 hPa (typ.)
Accuracy: ± 1,0 % (typ.)

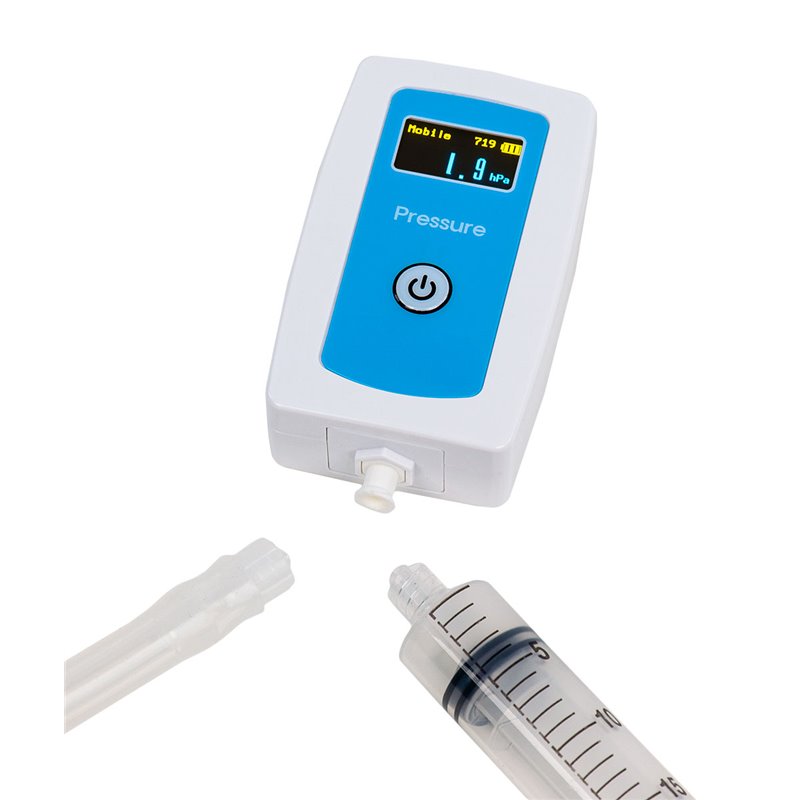

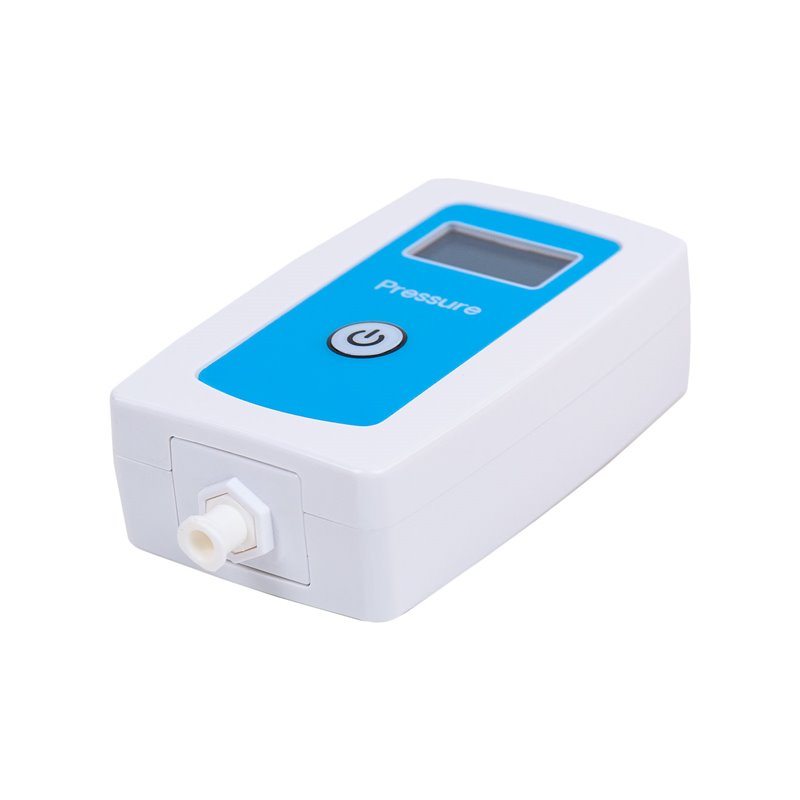

Connection: Luer-Lock (female)
Maximum sampling rate: 100 Hz
Dimensions of the sensor: 88 x 50 x 25 mm

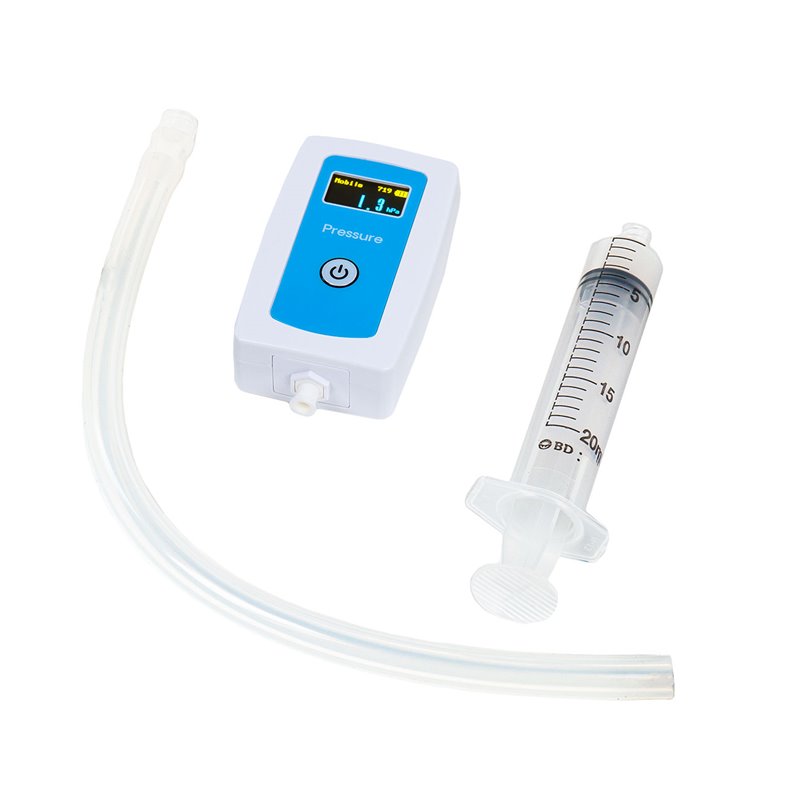

Delivery with 20 ml plastic syringe.
