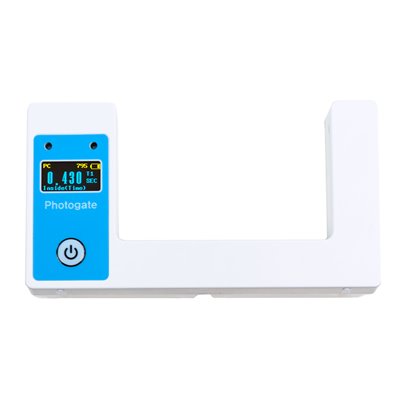

Sensor WLD, dual photogate

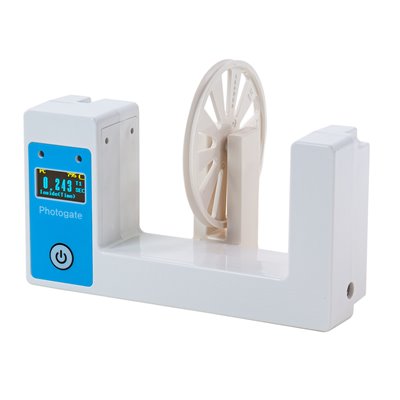

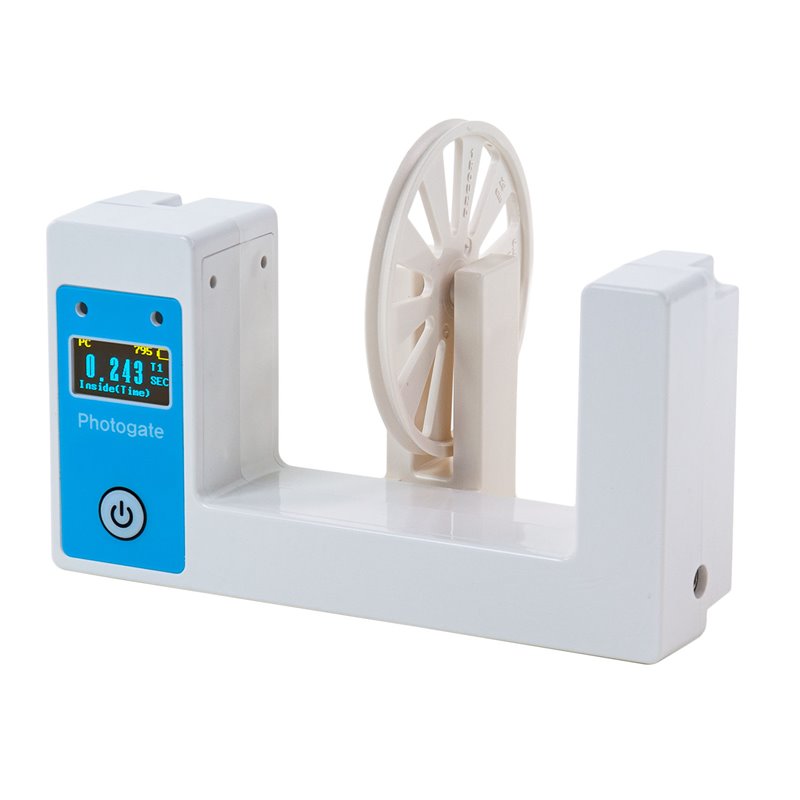

Two light gates on the inside of the arm enable the measurement of the time and speed of an passing object. Linear movements can be recorded using a clip-on spoke wheel.

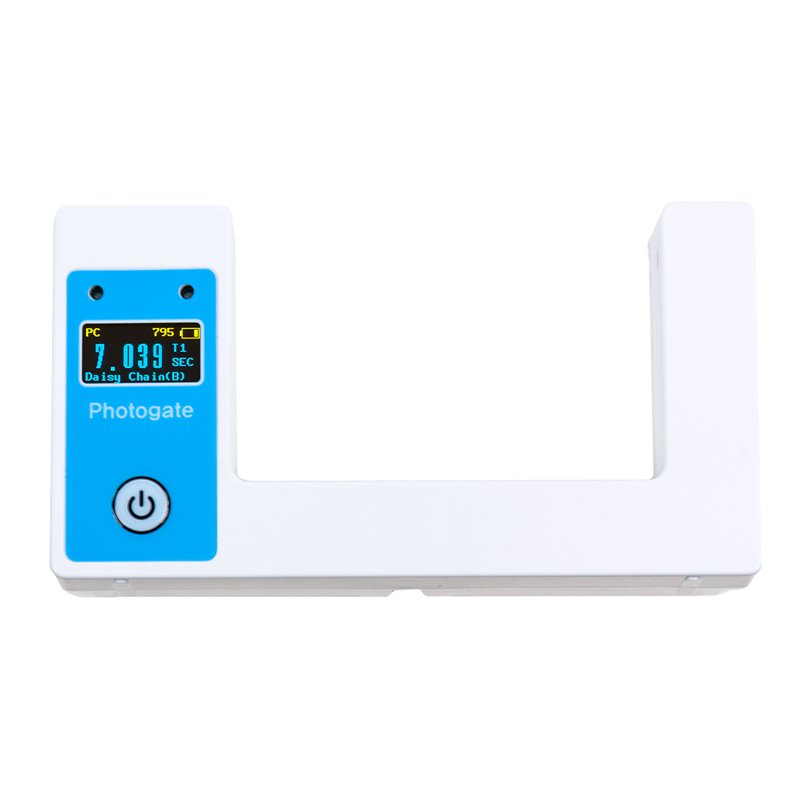

By connecting up to four additional light gates, the measured values of successive events can be recorded.

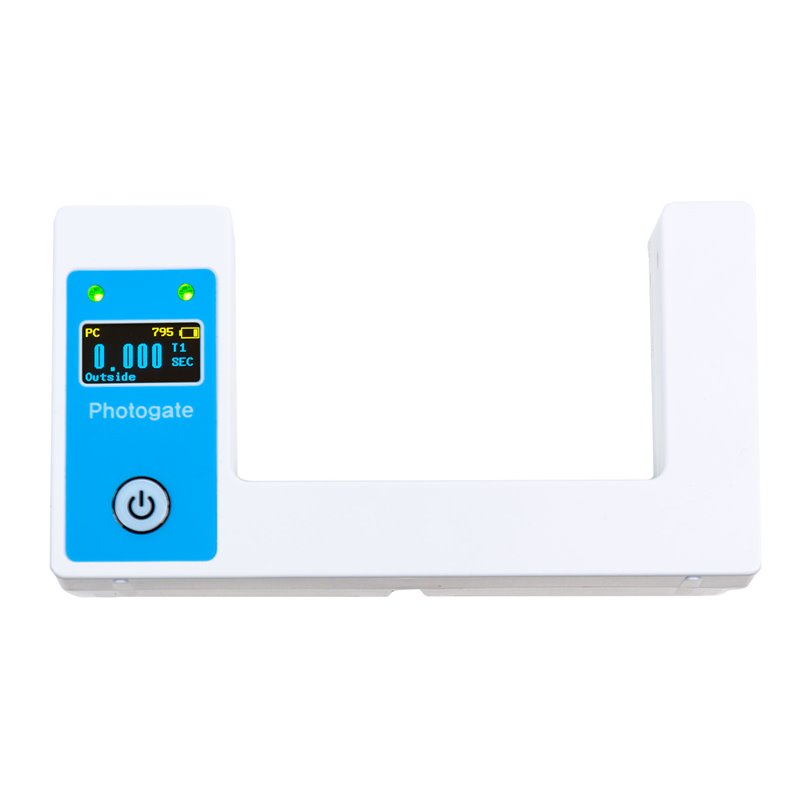

A light detector on the outside of the arm enables time measurement with an ‘arm width’ of several metres using an external laser signal.

- Measurement of the velocity and acceleration of an object
- Measurement of the period of simple pendulum motion
- Measurement of the time interval of a moving object
- Measurement of gravitational acceleration in free fall

Measuring range: 0 … 100 sec
Resolution: 10 µs
Arm length: 80 mm
Gate distance: 20 mm
Reaction time: 2,5 µs
Cooldown: 3,8 µs
Sampling rate: event-based
Housing dimensions: 183 x 38 x 71 mm

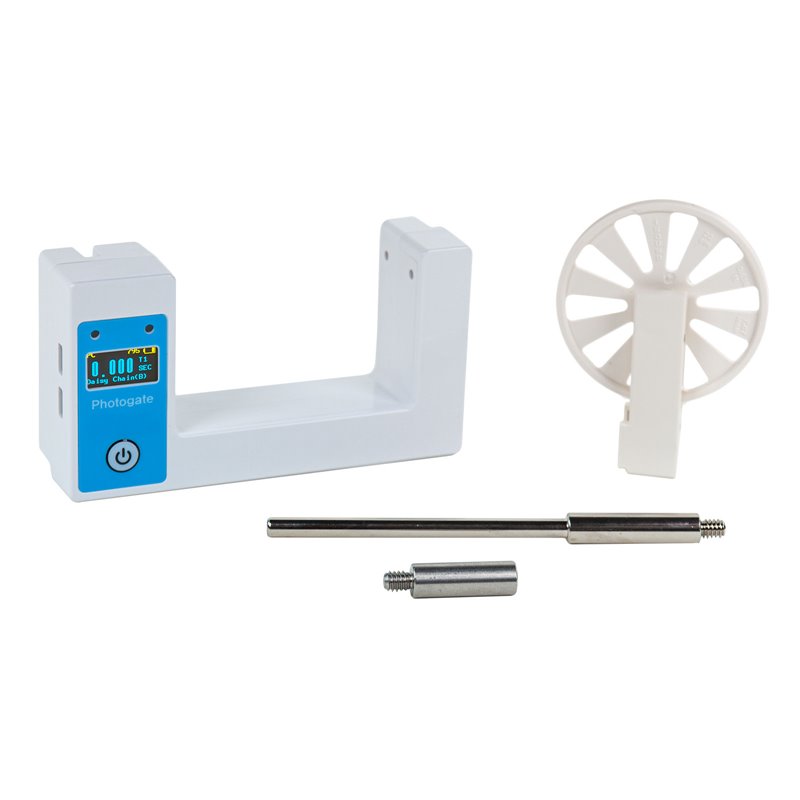

Delivery with spoked wheel and support rod
