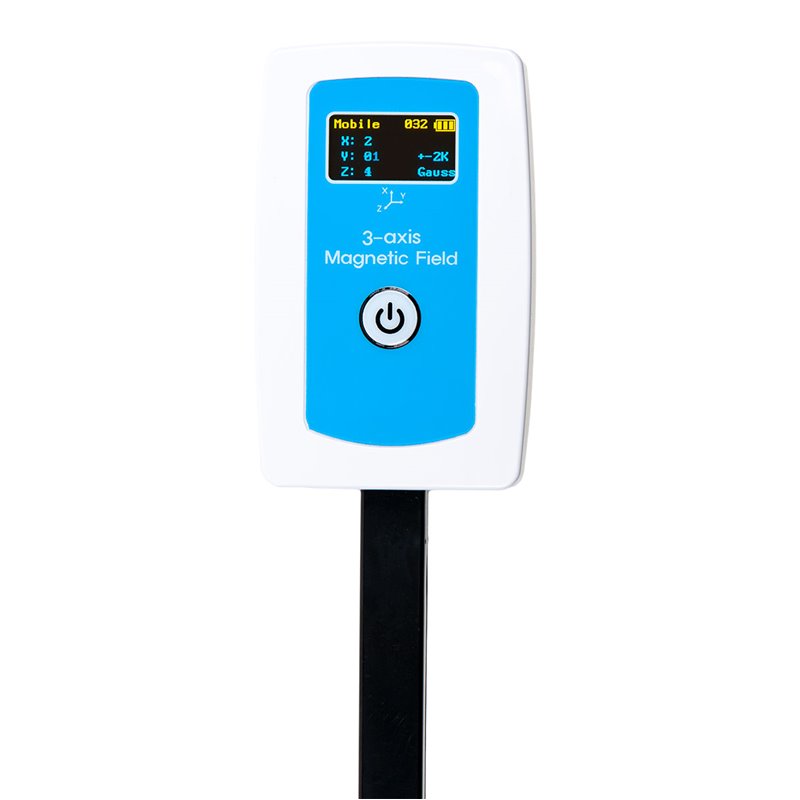

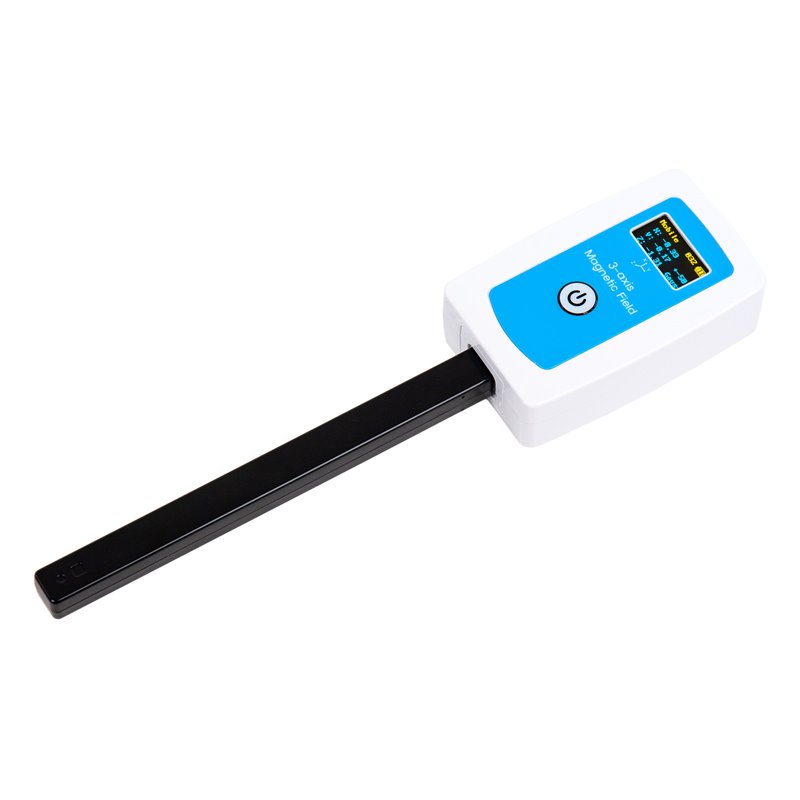

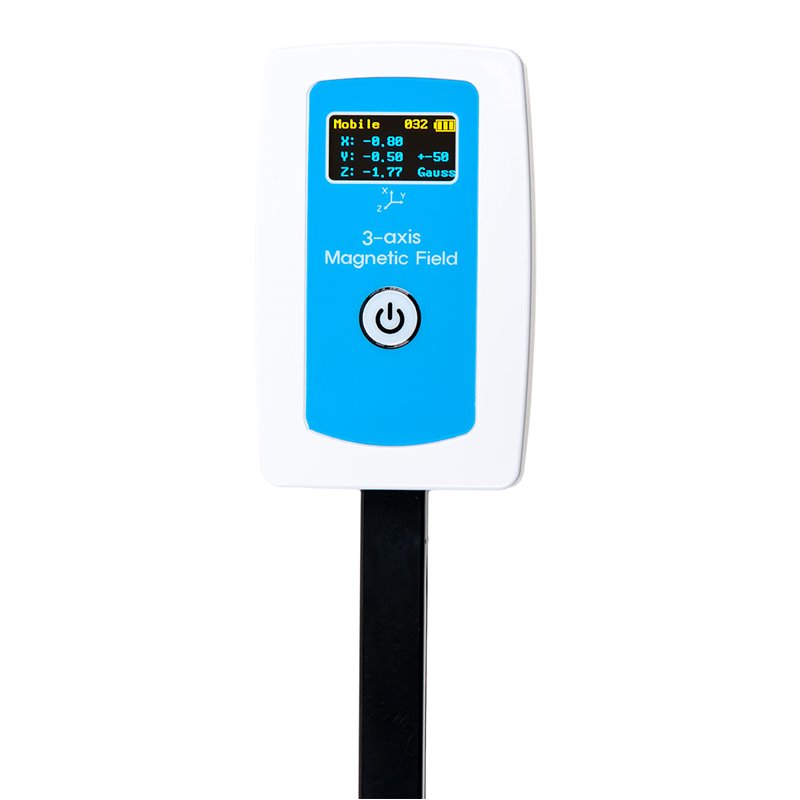

Sensor WLD, magnetic field, -/+ 2000 G

For measuring the strength of a magnetic field in 3 axes (x, y, z).

- Magnetic field strength as a function of distance
- Determination of the north and south poles of a magnet
- Magnetic field generated by electric current
- Magnetic field as a function of the number of turns in a coil

Measuring range:  ±50 G / ±2 000 G
Resolution: 0,01 G / 1 G
Temperature range: -20 … 60 °C, max 85% humidity
Sampling rate: 100 Hz
Housing dimensions: 80 x 50 x 25 mm

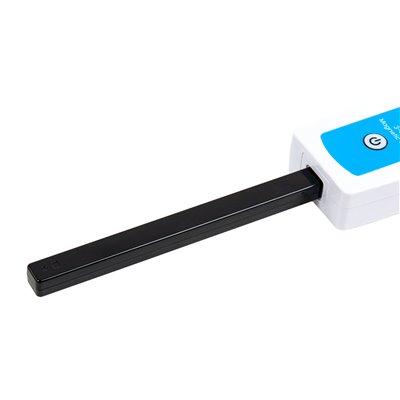

Probe dimensions: 10 x 135 mm
