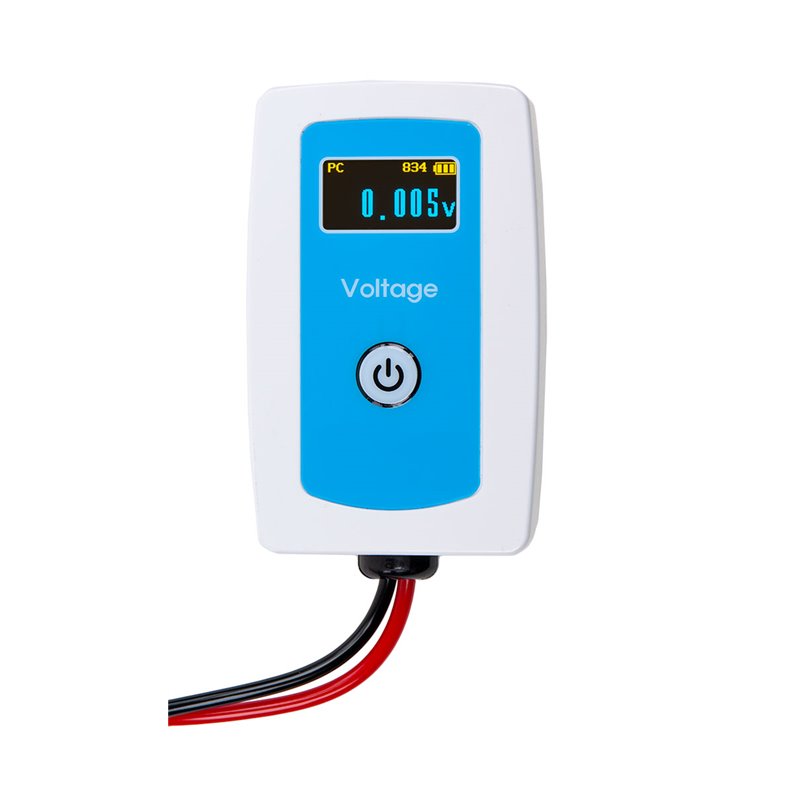

Sensor WLD, voltage, -/+ 15 V (diff)

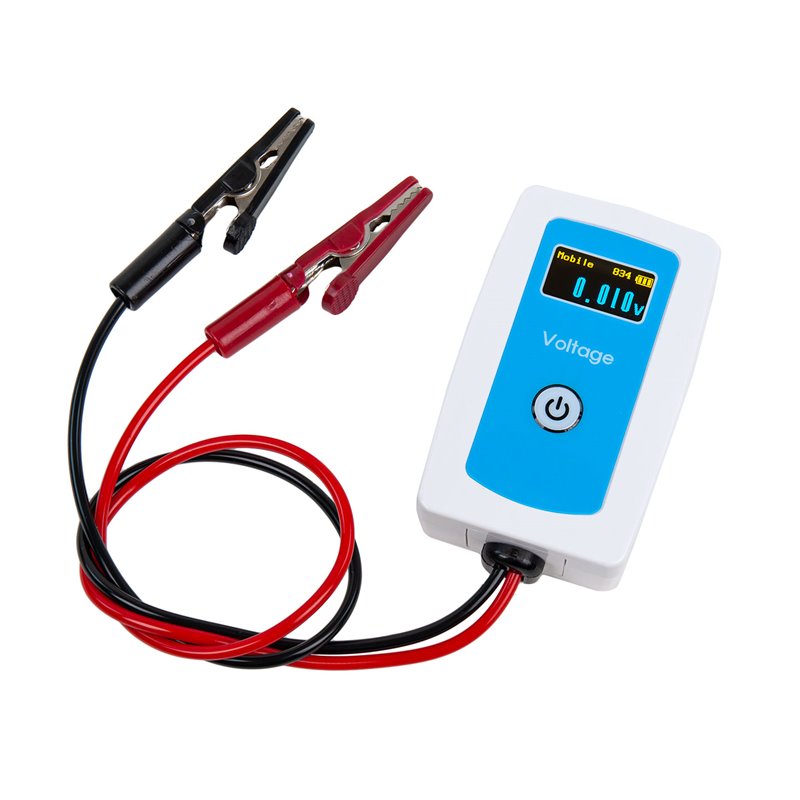

For measuring DC and AC voltages. Connection via two cables with crocodile clips.

- Ohm's law (relationship between voltage and current)
- Dependence of resistance on the length and cross-section of the conductor
- Series and parallel connection of resistors
- Voltage of a solar cell

Measuring range AC and DC: -15 ... +15 V (diff.)
Resolution: 0,002 V
Sensitivity: 0,1%
Maximum sampling rate: BT: 100 Hz, USB: 1000 Hz
Sensor dimensions: 80 x 50 x 25 mm
Measuring cable: L = approx. 300 mm
