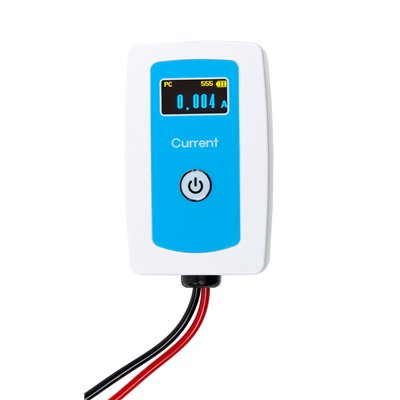

Sensor WLD, current, -/+ 3 A (diff)

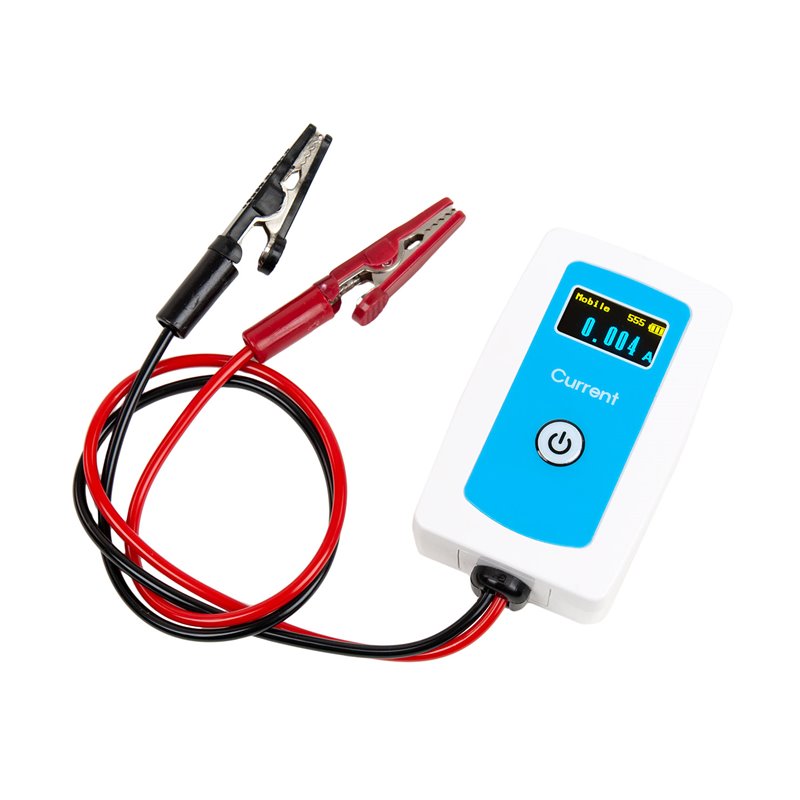

For measuring direct and alternating currents. Connection via two cables with crocodile clips.

- Ohm's law (relationship between voltage and current)
- Charging and discharging of a condenser
- Current measurement with a coin cell battery
- Dependence of resistance on the length and cross-sectional area of a conductive core

Measuring range AC and DC: -3 … +3 A (diff.)
Resolution: 0,001 A
Sensitivity: ± 10 mA (typ.)
Maximum sampling rate: BT: 100 Hz, USB: 1000 Hz
Sensor dimensions: 80 x 50 x 25 mm
Measuring cable: L = approx. 300 mm
