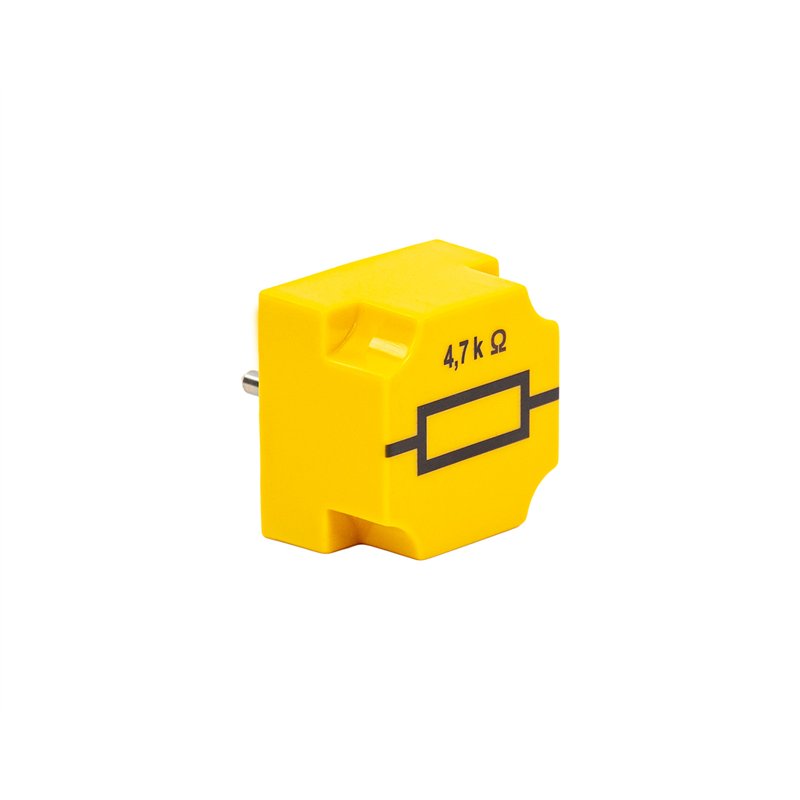

PIB resistor 4.7 kOhm

Plug-in module system for school experiments in electricity, electromagnetism and electronics; plug-in module (STB) with a fixed resistance of 4700 ohms;

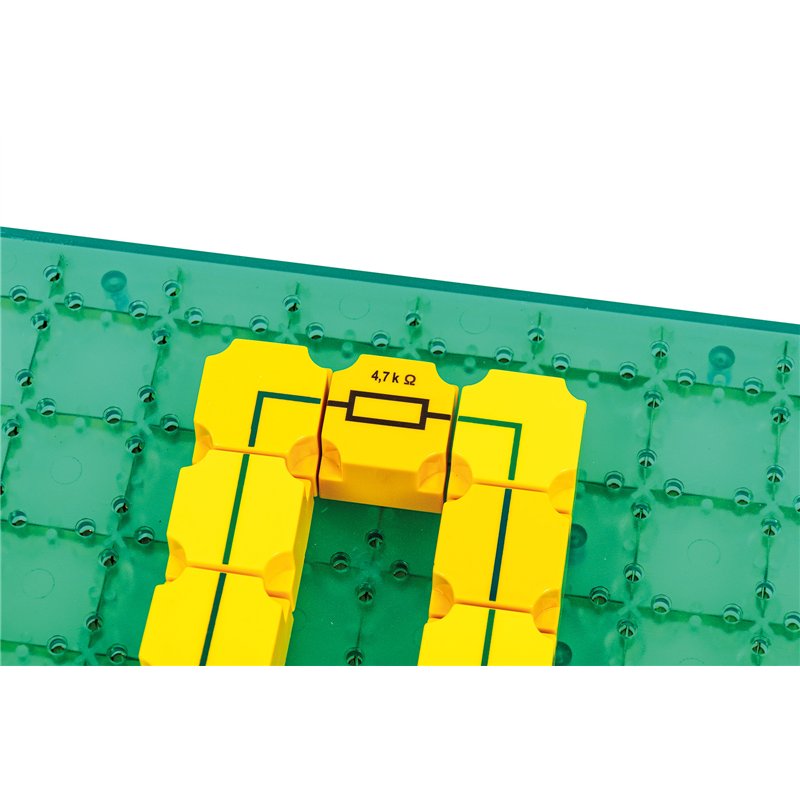

robust plastic housing with a transparent base plate, ensuring the component is clearly visible whilst also being protected from mechanical damage; the base plate is secured with Phillips-head screws, damaged components can therefore be repaired or replaced very quickly and easily; screen-printed lines and circuit symbols provide a clearly recognisable circuit diagram of an experimental setup; robust 4 mm plug pins enable a secure electrical connection with the metal plates of the plug-in board
Base plate with two plug pins
Distance between plug pins: 19 mm
Resistance value: 4.7 kΩ
Tolerance: ±5%
Power: 0.25 W
Material (upper part): ABS plastic, yellow
Material (pin connectors): brass, nickel-plated
Dimensions: 40 x 40 x 27(41) mm
Weight: approx. 20 g
