Electricity Basic Set \"compact\" (MBC)

Equipment set magnetic building block system compact (MBC), electricity - basic, for carrying out more than 20 experiments on the topics:
- Fundamentals of electricity
- Electrical resistance
- Heat energy from electrical energy
- Work and power

Complete equipment set, including the necessary lights, wires and cables, storage and instructions, the magnetic building blocks consist of a robust plastic housing (ABS) with a transparent base plate
- Switch symbol printed on (screen printing)
- Sockets also suitable for 4 mm safety plugs
- Base plate with integrated neodymium magnets
- Dimensions: 84 x 84 x 39 mm

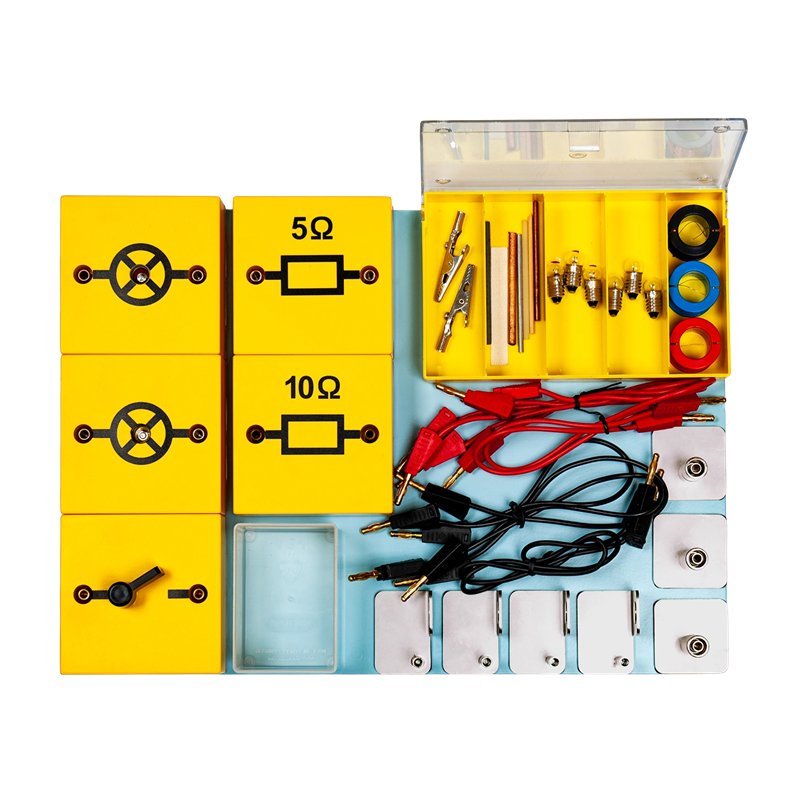

Contents of the device set:
2 x P3710-2A MBC Lamp socket E 10, 2 jacks
1 x P3710-2R MBC On-Off switch
1 x MB200-1W MBC Precision resistor, 5 ohms
1 x MB200-2W MBC Precision resistor, 10 ohms
4 x DE312-1A Clip terminal for 1,5 V batteries, magnetic
3 x P3711-4M Clamping socket, magnetic
1 x P3314-1A Fuse wire, D0,1 mm, L50 m
1 x P3316-1C Constantan wire D0,5 mm L15 m
1 x P3316-1B Copper wire, D0,2 mm, black, SE
1 x P3325-1A Set ofconductors and nonconductors 7 pcs.
3 x P3320-1A Light bulb, 2,5 V/70 mA (1,5 V/50 mA), E10
3 x DE309-5S1 Light bulb, 12 V / 100 mA, E10
2 x P3310-1A Crocodile clip, plain metal
1 x P3325-2C Electrolysis tank, plastic, transparent
3 x P3310-2R Connecting lead, 25 cm, red, SE
3 x P3310-2E Connecting lead SE 25 cm, black
1 x P3310-3A Connecting lead 50 cm, red, SE
1 x P3310-3R Connecting lead, 50 cm, black, SE
1x DE309-1A Storage container, transparent

Storage:
1x P7840-1A Box insert metal, bottom, small
1x P7806-1K Storage box II small, with cover

Including instructions for the following experiments:

Basic circuits, conductors & non-conductors

ELC 01.01 The electrical circuit
ELC 01.02 Double-throw switch
ELC 01.03 Two-way switch
ELC 01.04 Voltage
ELC 01.05 Serial connection of voltage sources
ELC 01.06 Parallel connection of voltage sources
ELC 01.07 Terminal voltage – Idle voltage
ELC 01.11 Amperage
ELC 01.12 Conductors and non-conductors - solids
ELC 01.13 Conductors and non-conductors - liquids
ELC 01.14 Is the human body an electrical conductor?
ELC 01.15 Is the human body an electrical conductor in contact with water?
ELC 01.16 Closing a circuit by grounding

Electrical Resistance
ELC 02.01 Ohm’s law
ELC 02.02 Application of Ohm’s law
ELC 02.03 Measuring resistance with an Ohmmeter
ELC 02.04 Is the resistance of a wire depending on its length and its diameter?
ELC 02.05 Is the resistance of a wire depending on its material and temperature?
ELC 02.06 Is an incandescent lamp an ohmic resistor?
ELC 02.07 Serial connection of incandescent lamps
ELC 02.08 Serial connection of ohmic resistors
ELC 02.09 Parallel connection of incandescent lamps
ELC 02.10 Parallel connection of ohmic resistors
ELC 02.11 Ohmic resistors in parallel and series circuits
ELC 02.12 Voltage division
ELC 02.13 Model of potentiometer
ELC 02.14 Dimming by means of a potentiometer

Thermal energy derived from electrical energy
ELC 03.01 Electrical energy is converted into thermal energy
ELC 03.02 The incandescent effect of a filament
ELC 03.03 Conducting wires and resistance wires
ELC 03.04 Safety fuse

Work and power
ELC 04.01 Work and power of electrical current
ELC 04.02 Work and power of an electric motor

Dimensions: 400 x 300 x 130 mm
Mass: 2.86 kg
