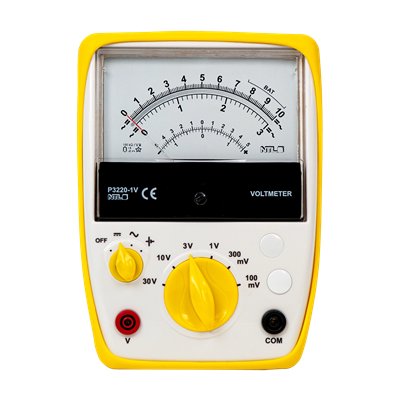

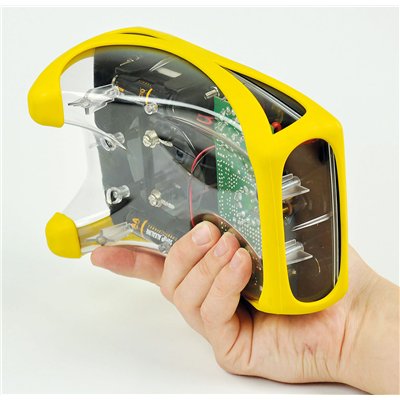

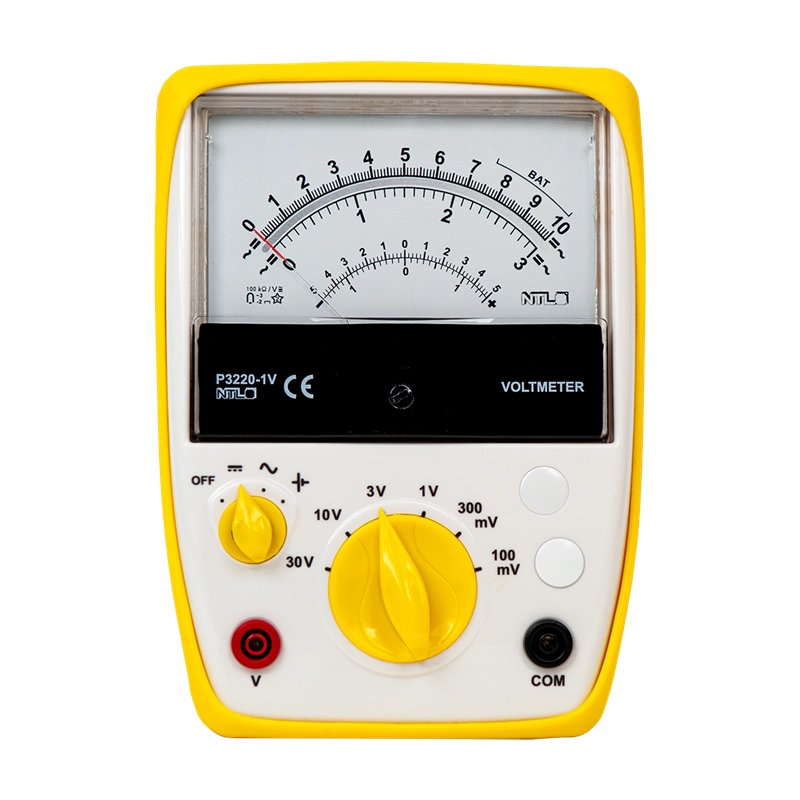

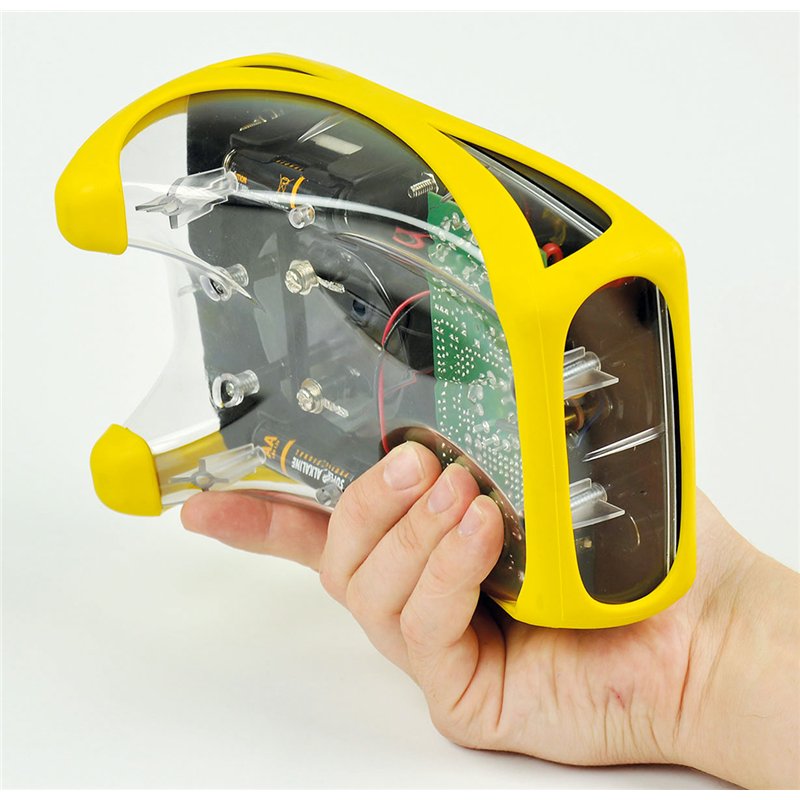

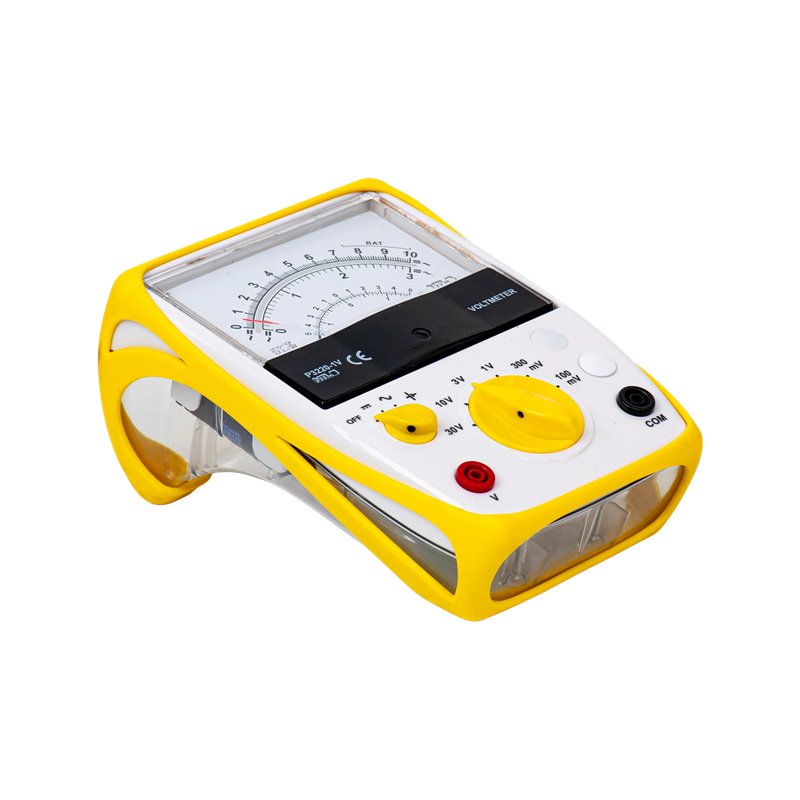

Volmeter SE

Analog hand-held measuring device for voltage, especially suitable for student experiments thanks to electronic overload protection.

Technical data:
DC and AC measuring ranges: 100, 300 mV, 1, 3, 10, 30 V
Selector switch: DC, AC, battery check, off
Moving-coil movement with mirror scale
Arc length: approx. 90 mm
Overload protection with diodes
Accuracy: 2% (DC), 3% (AC)
Internal resistance: 100 kOhm/V
Usable frequency range for AC: 15 Hz ... 20 kHz
Permissible max. input voltage: 30 Vrms
Power supply: 4 x AA batteries (battery life: approx. 3 years)
Dimensions: approx. 200 x 140 x 100 mm
Mass: approx. 600 g
