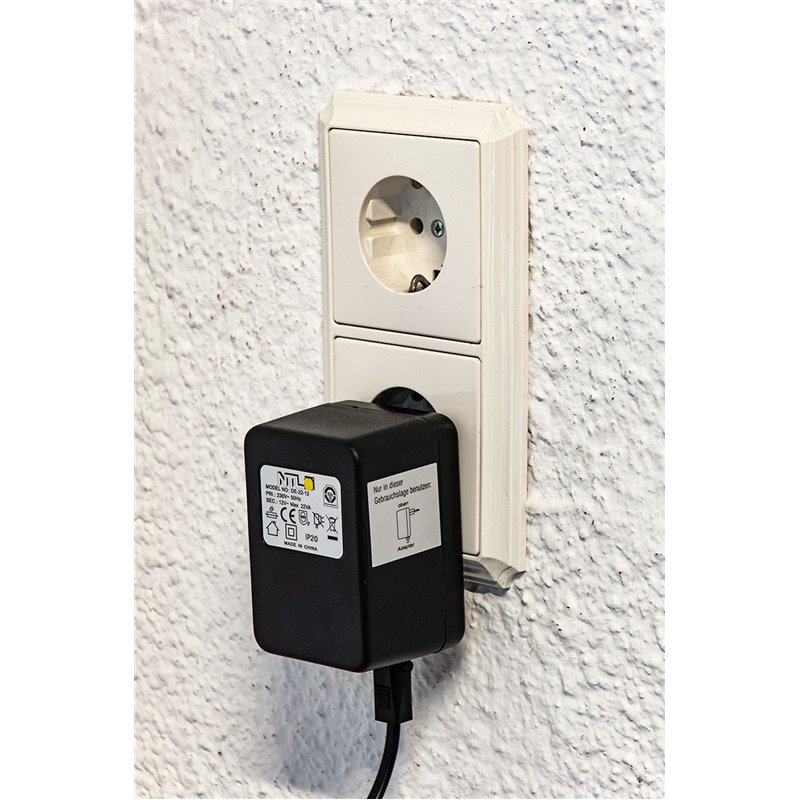

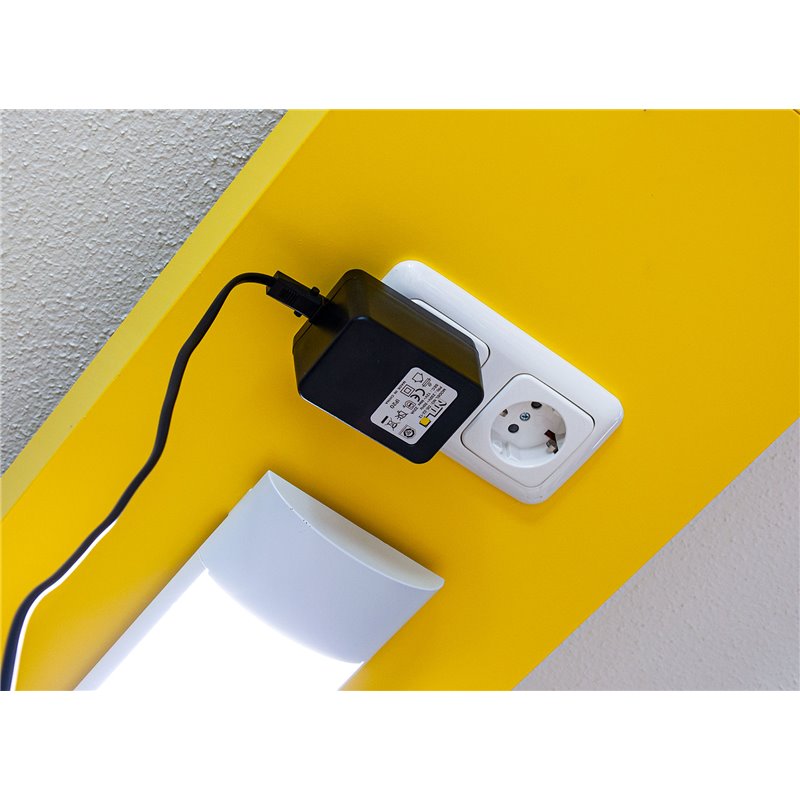

Fixed-voltage power supply 12 V AC / 22 VA (120 V)

P3130-7CU
Price on request

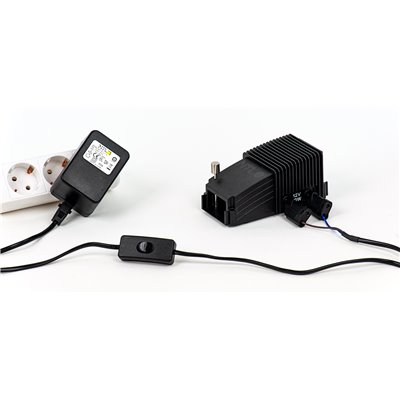

For the safe power supply of experimental devices that require 12 V AC for operation (experimental lights, timer, function generator, etc.)

Technical data:
Output voltage: 12 V AC/1.83 A (22 VA)

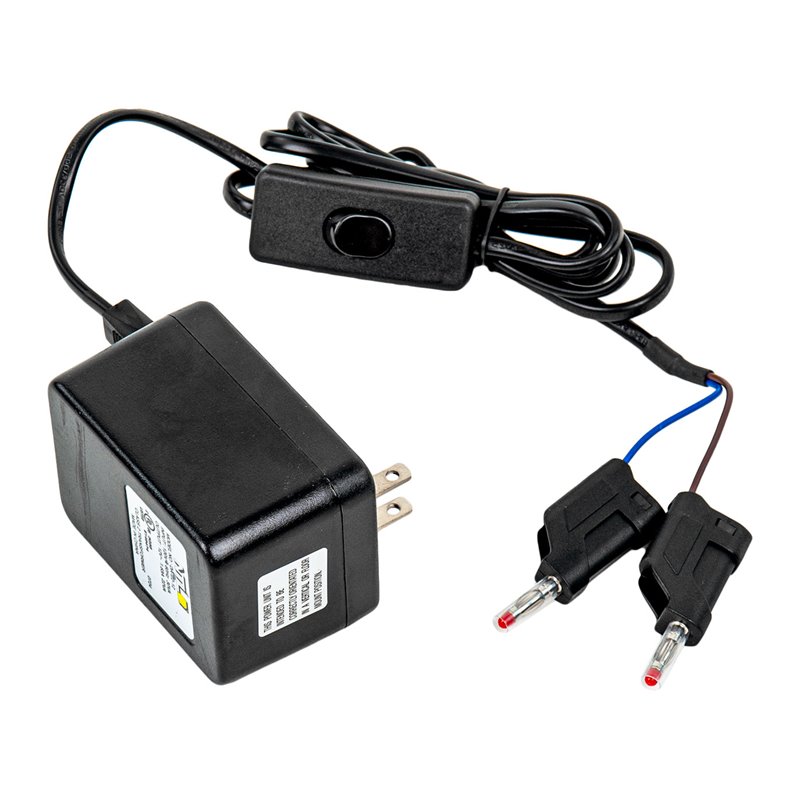

Connection cable with on/off switch and two 4 mm safety plugs with sliding sleeve to protect against accidental contact (L=approx. 175 cm)
Protection class 2 (= RiSU-compliant)
Supply voltage: 120 V AC/60 Hz
Dimensions: approx. 81 x 56 x 48(66) mm
Mass: approx. 588 g
