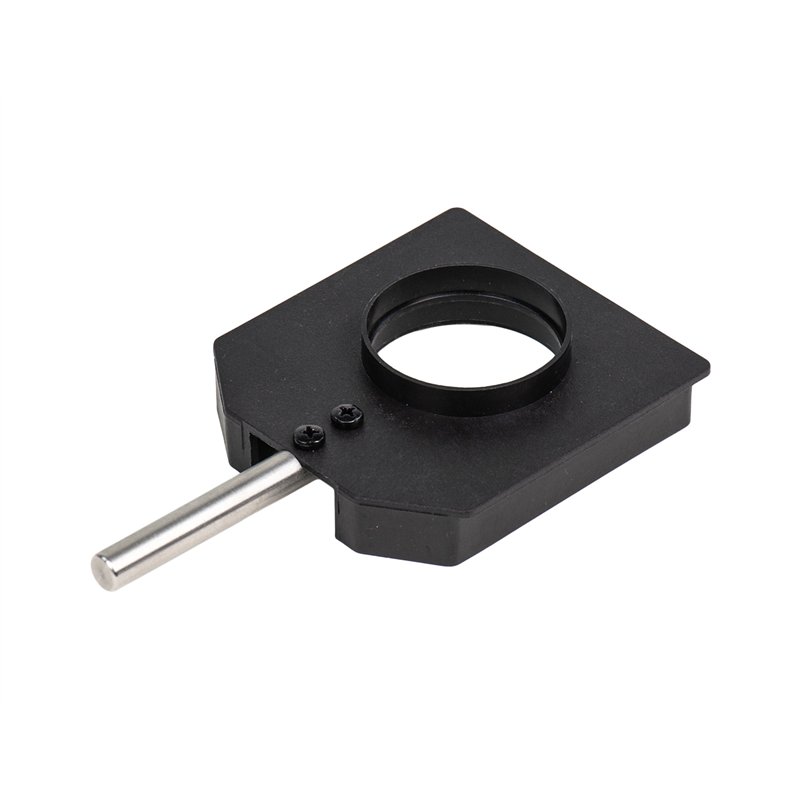

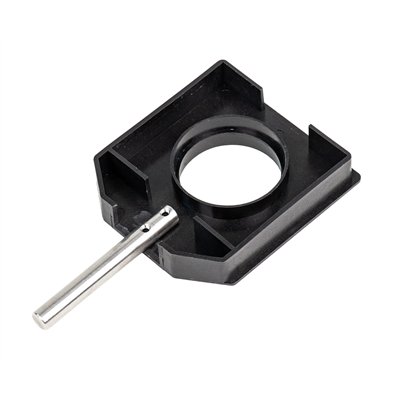

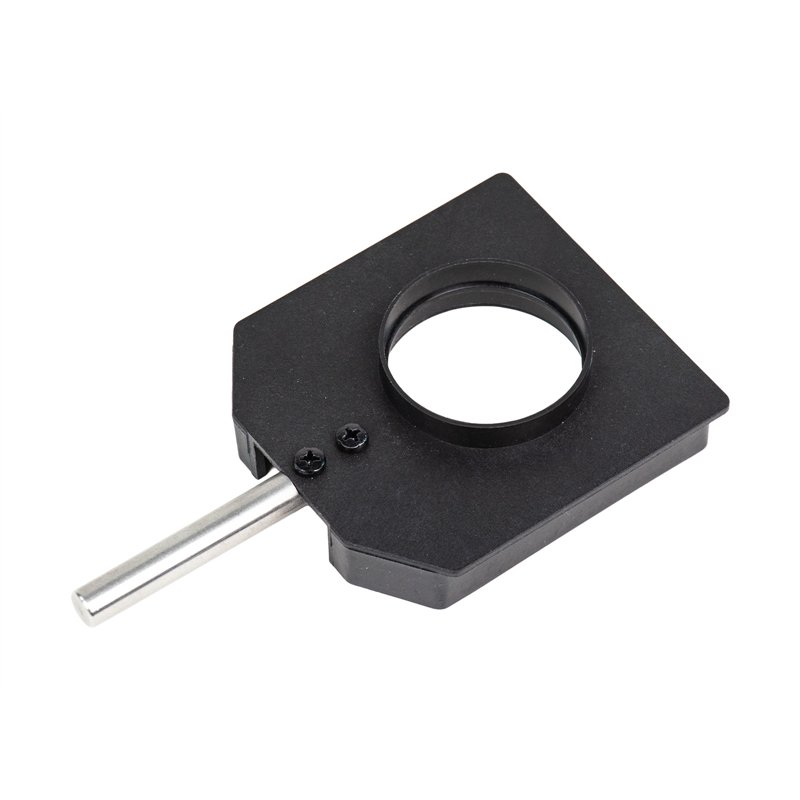

Holder for lenses in mounts and round apertures, with stem

For precise positioning of optical components in mounts (glass lenses, concave or convex mirrors, round apertures, etc.) in the optical axis;

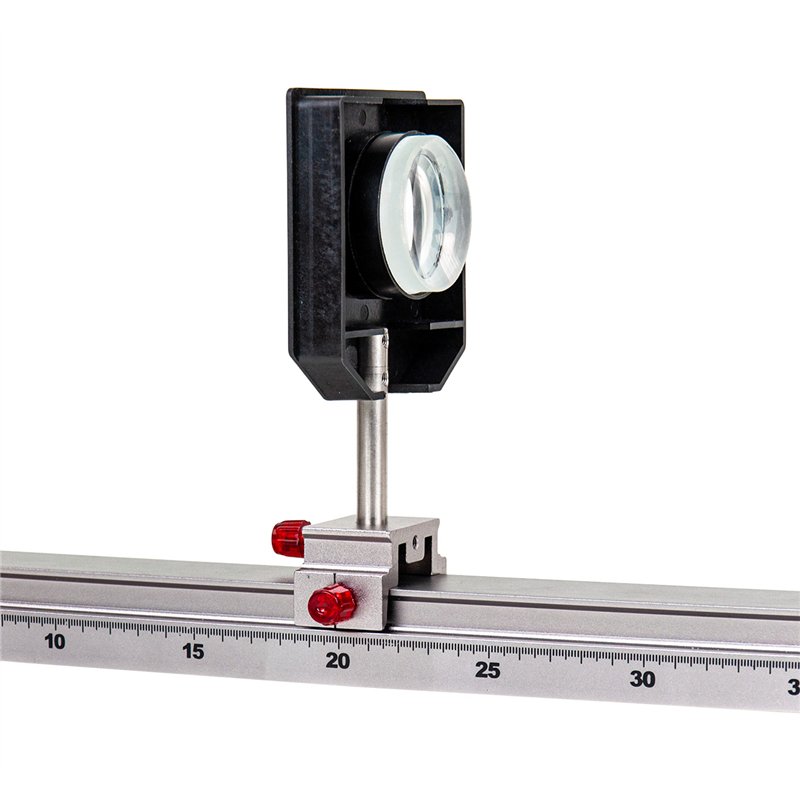

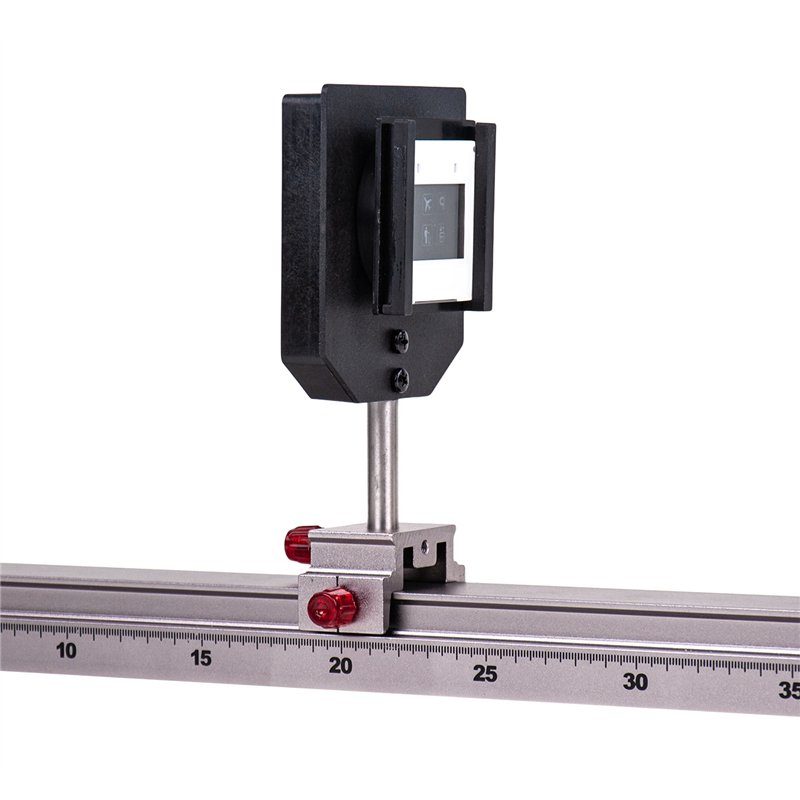

very stable holder with mounting ring for optical components in mounts and slide and aperture holders can be attached; the lens holder can be fixed in a rider on the optical bench using a fixed stem
Holder material: glass fibre reinforced polyamide, black
Stem: stainless steel
Height of optical axis: 115 mm
Holder dimensions: 90 x 25 x 98 mm
Stem dimensions: L=58 mm, D=10 mm
Weight: approx. 87 g

Additionally recommended:
DL162-1R Slider with column, for optical bench
P5310-2B Slideholder, detachable
