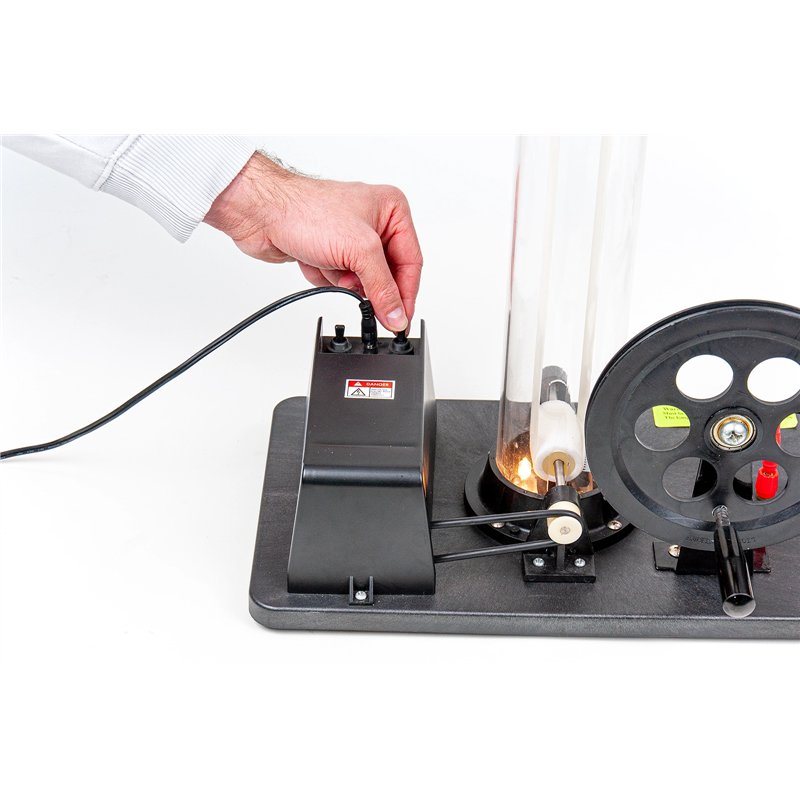

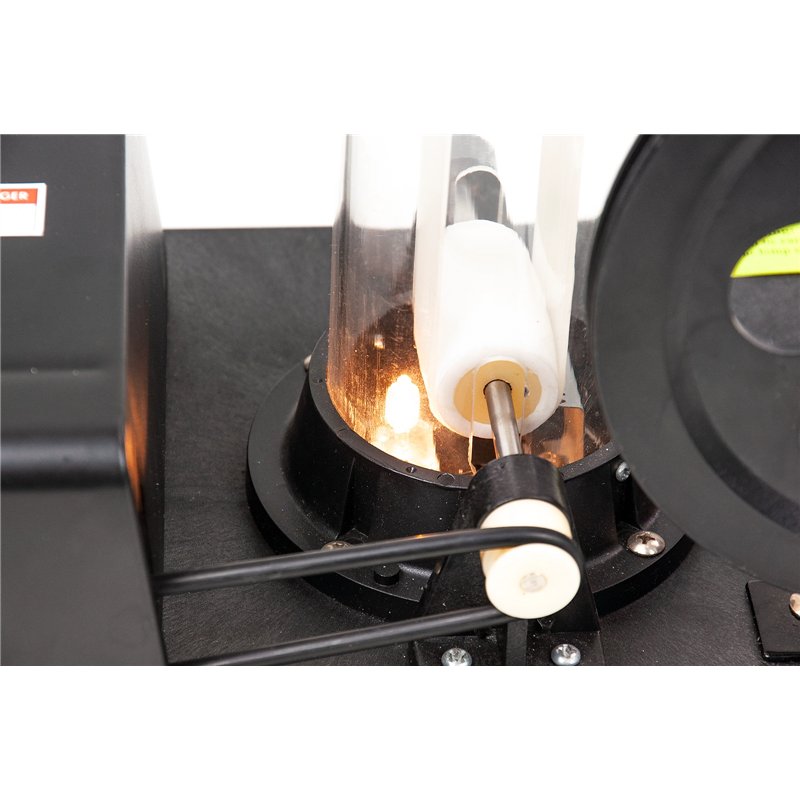

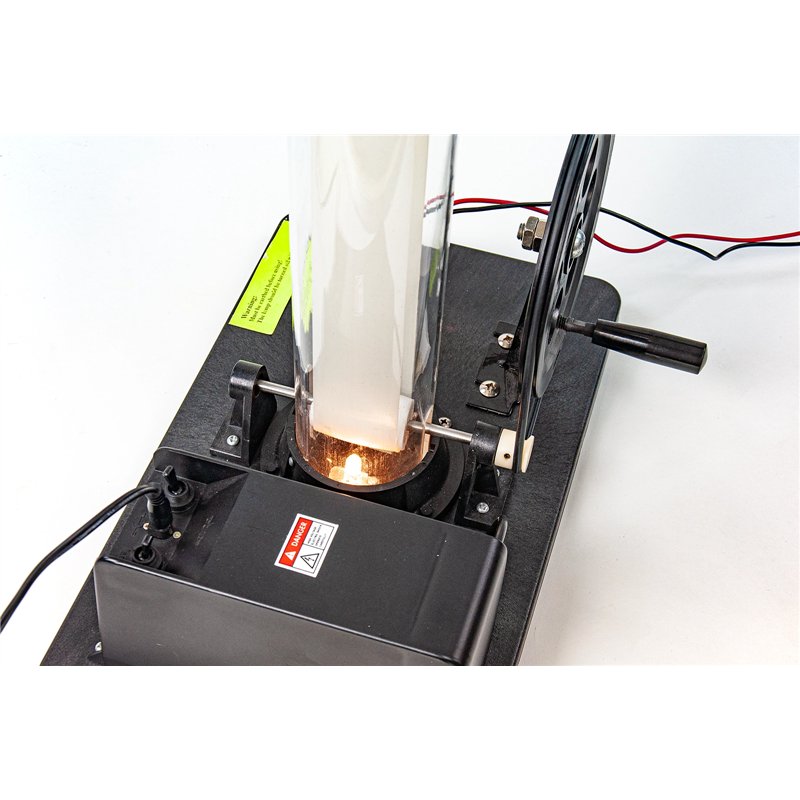

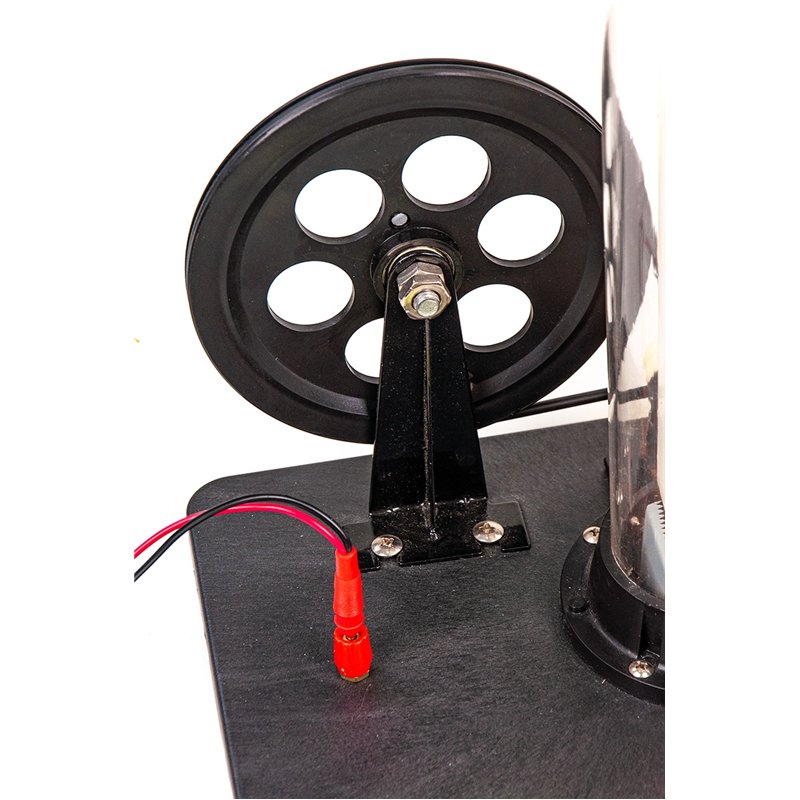

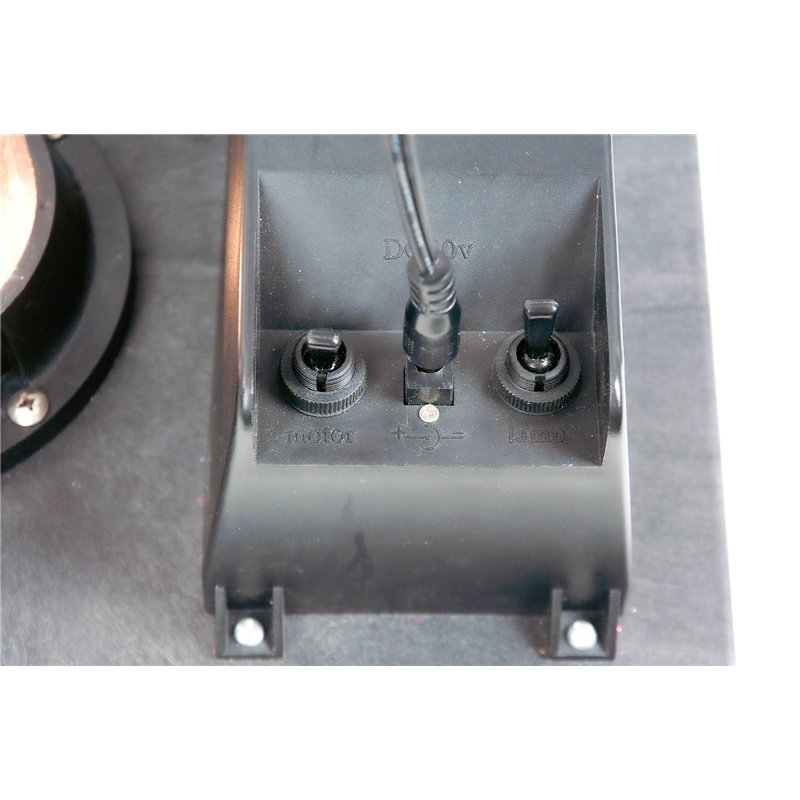

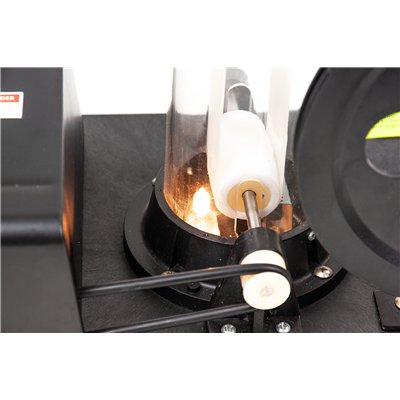

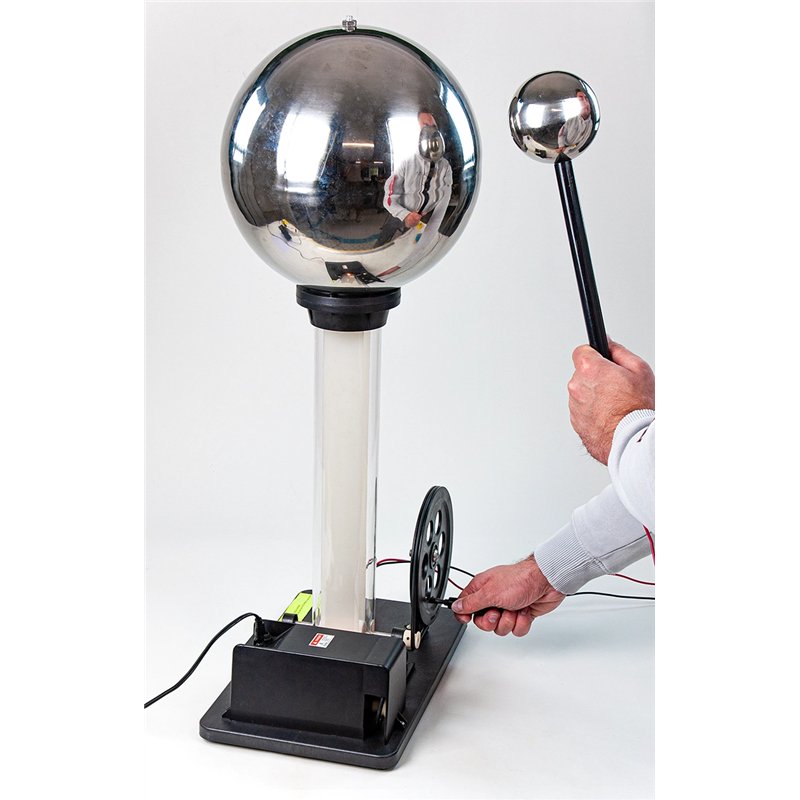

Van de Graaff generator II
DE525-3B
Price on request
Used for generating very high DC voltages in electrostatics experiments:
Diameter of removable conducting sphere: 280 mm;
supplied with conductor sphere on support (D = approx. 100 mm,

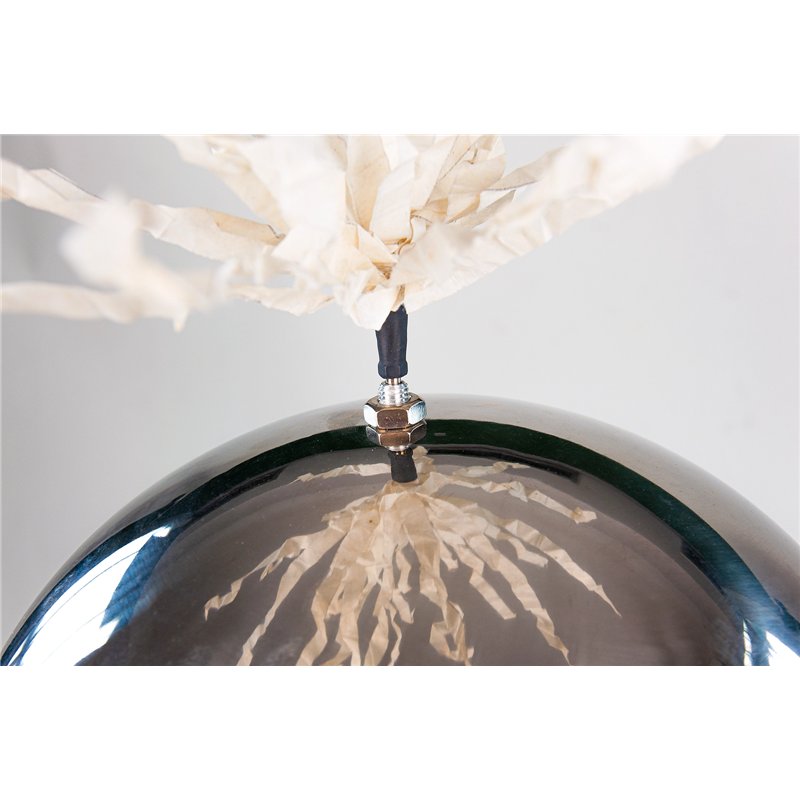

support L= approx. 300 mm), paper bush, pointed wheel and fixed-voltage transformer;
Input voltage: 230 V AC/50 - 60 Hz;
dimensions: 380 x 230 x 700 mm;
mass: approx. 4.5 kg
Diameter of removable conducting sphere: 280 mm;
supplied with conductor sphere on support (D = approx. 100 mm,
support L= approx. 300 mm), paper bush, pointed wheel and fixed-voltage transformer;
Input voltage: 230 V AC/50 - 60 Hz;
dimensions: 380 x 230 x 700 mm;
mass: approx. 4.5 kg

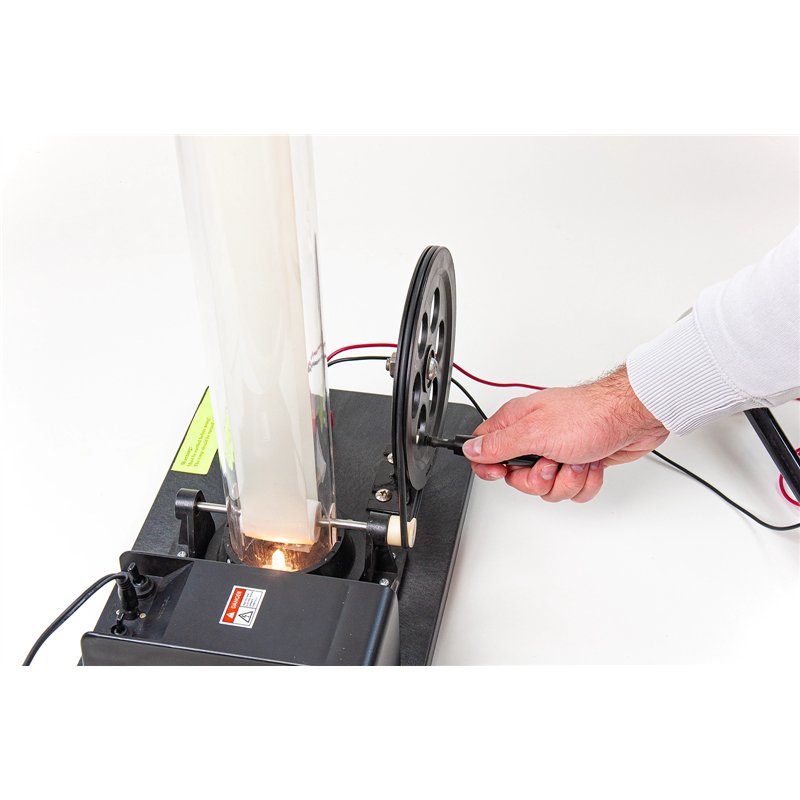

Man kann die Ladung mit DE722-1H Statisches Voltmeter "inno" messen. Bereits bei einer Halbdrehung mit der Handkurbel kommt man auf 10 kV, die Ladung ist positiv. Die Drehrichtung an der Kurbel ist dabei nicht von Belang.
