DS202-1R
Price on request

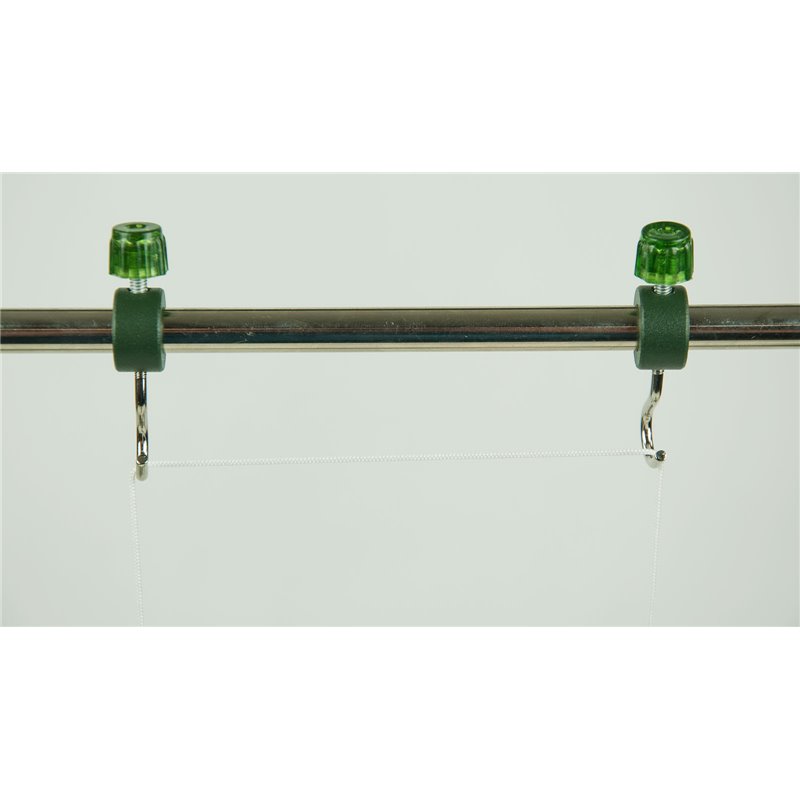

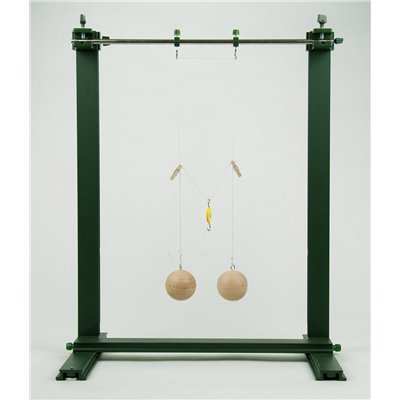

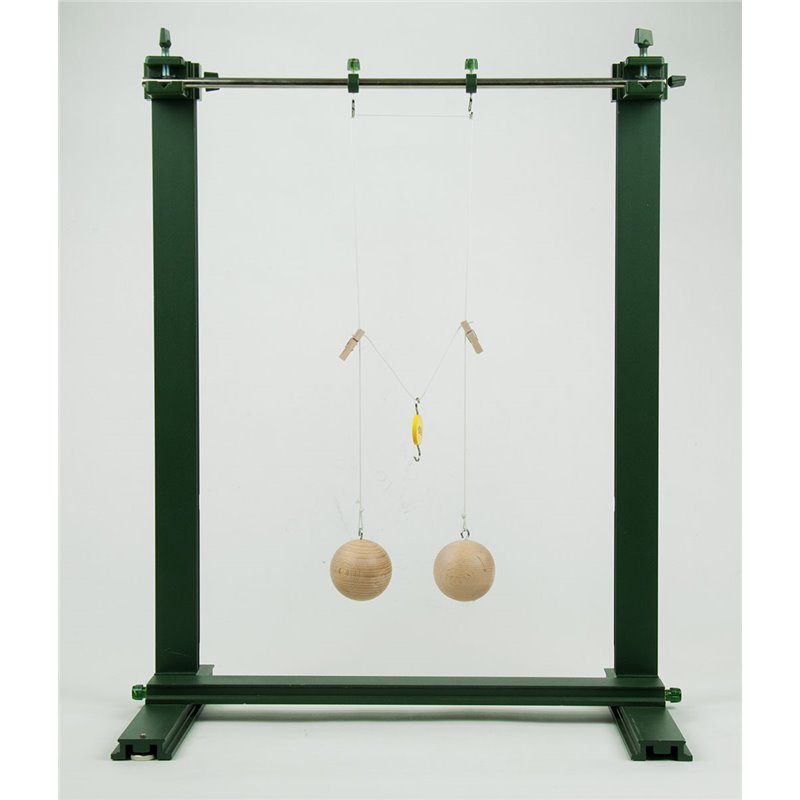

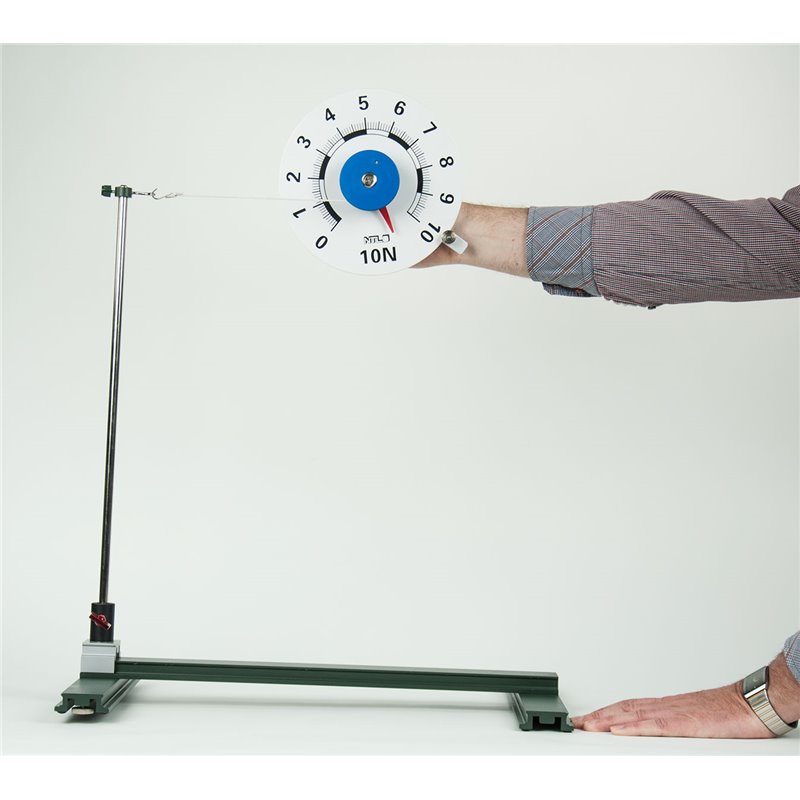

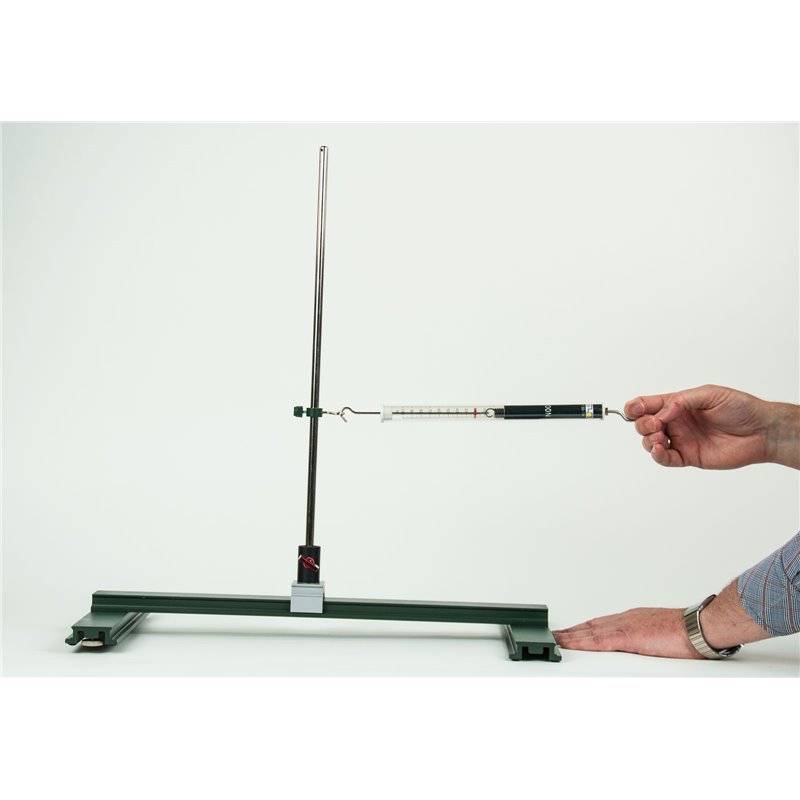

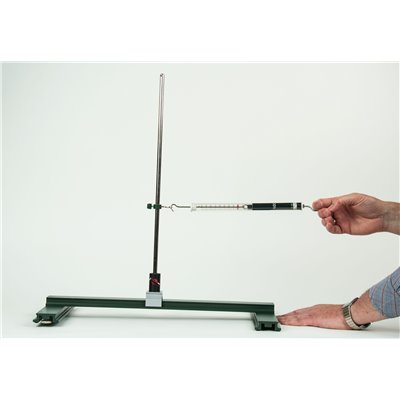

For hanging and thus connecting cords or devices that can be hung on a hook (pendulum balls, pulleys, coil springs, dynamometers, etc.), with stand rods;
Aluminium ring with steel hook and clamping screw, for attachment to round material
Ring material: anodised aluminium
Suitable for round material - d: 7 - 10 mm
Ring - di: 10.2 mm
Ring - da: 18 mm
Hook opening: approx. 10.5 mm
Dimensions: approx. 54 x 18 x 11 mm
Weight: approx. 9 g



Experiment(s) - from the experiment manual P9102-1AE Mechanics Demo (ENG)

Experiment MED 03.16 (PDF) (98.48KB)

Experiment(e) – aus der Versuchsanleitung P9102-1A Mechanik Demo (DEU)

Versuch MED 03.16 (PDF) (97.56KB)
