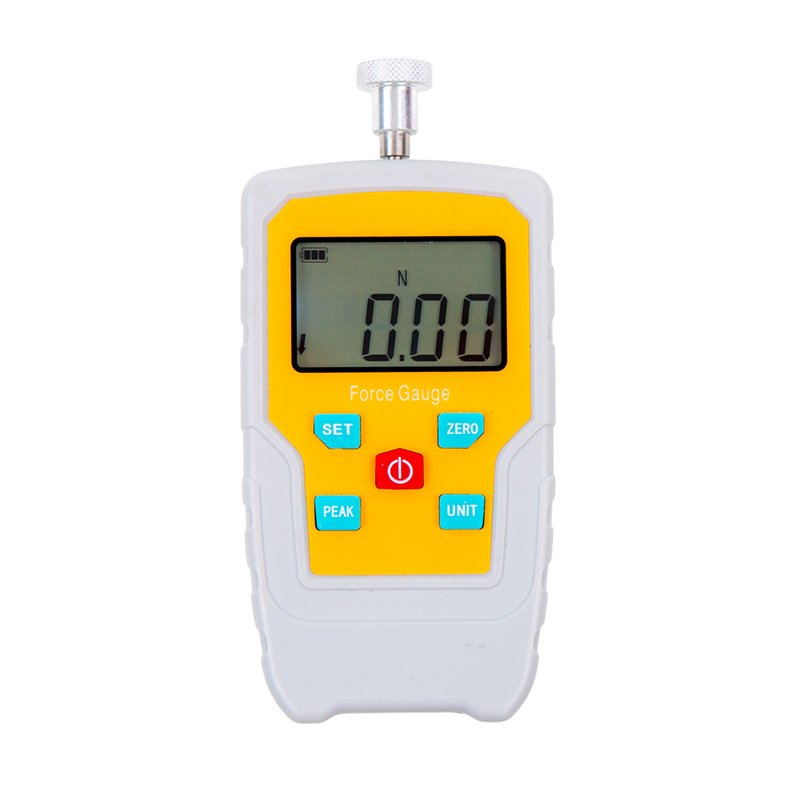

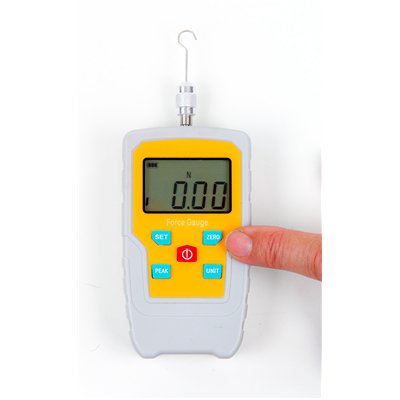

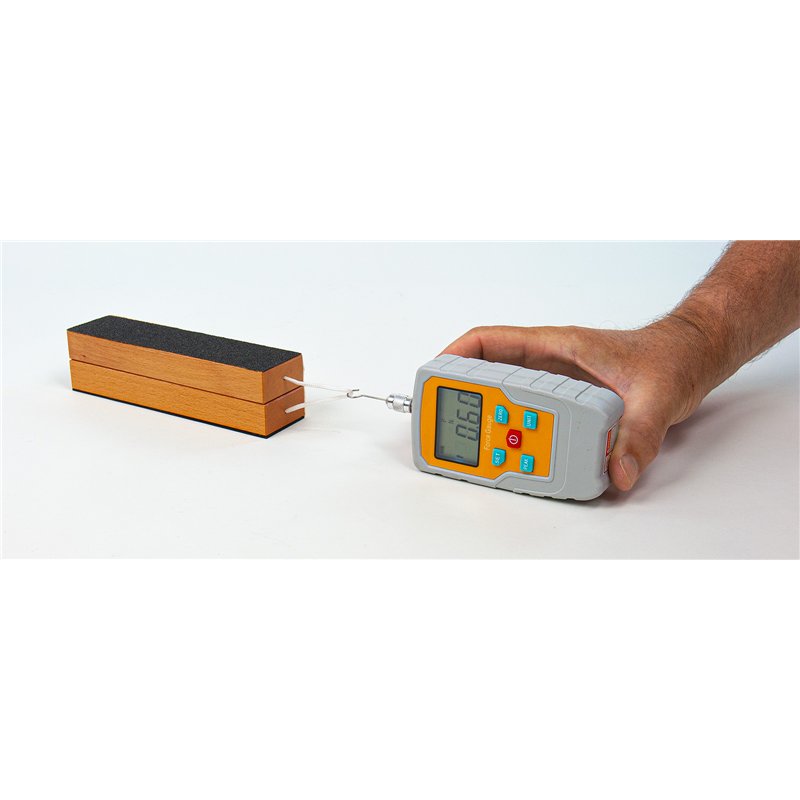

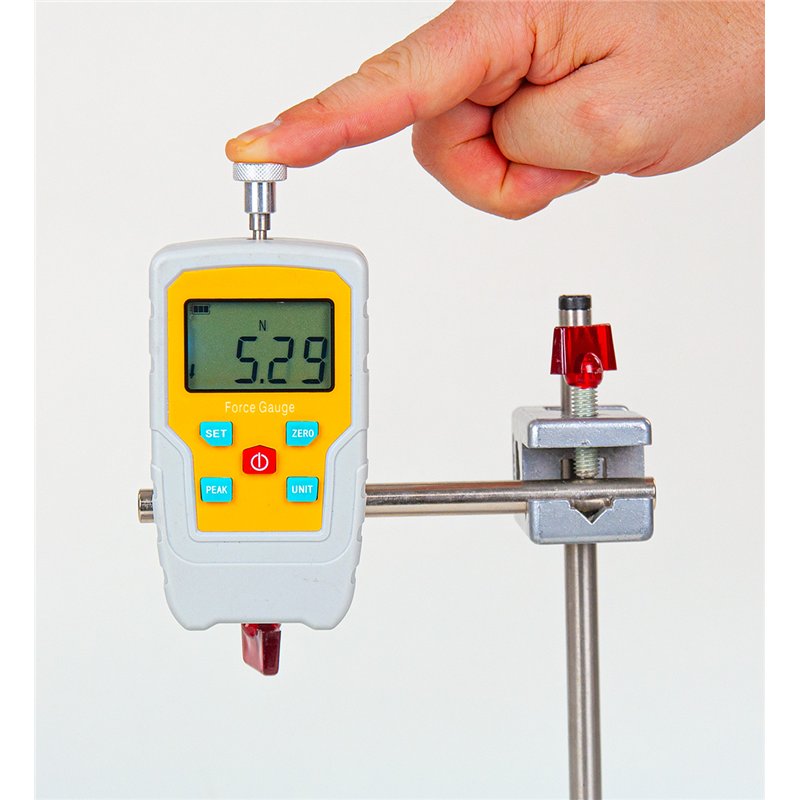

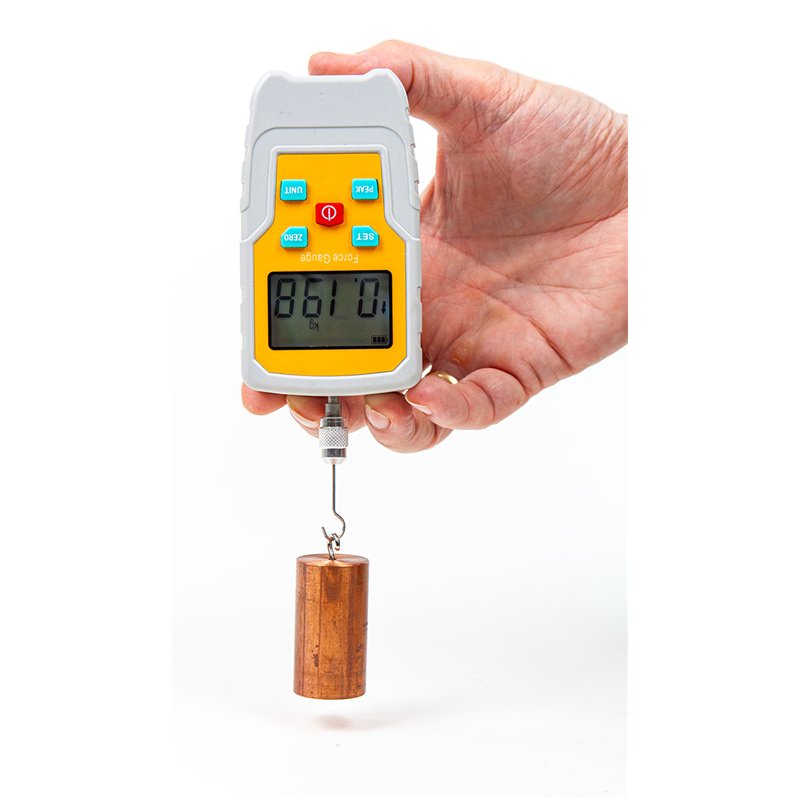

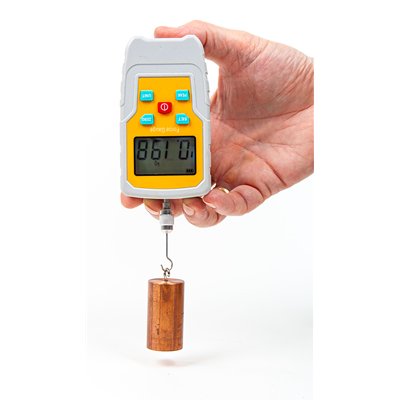

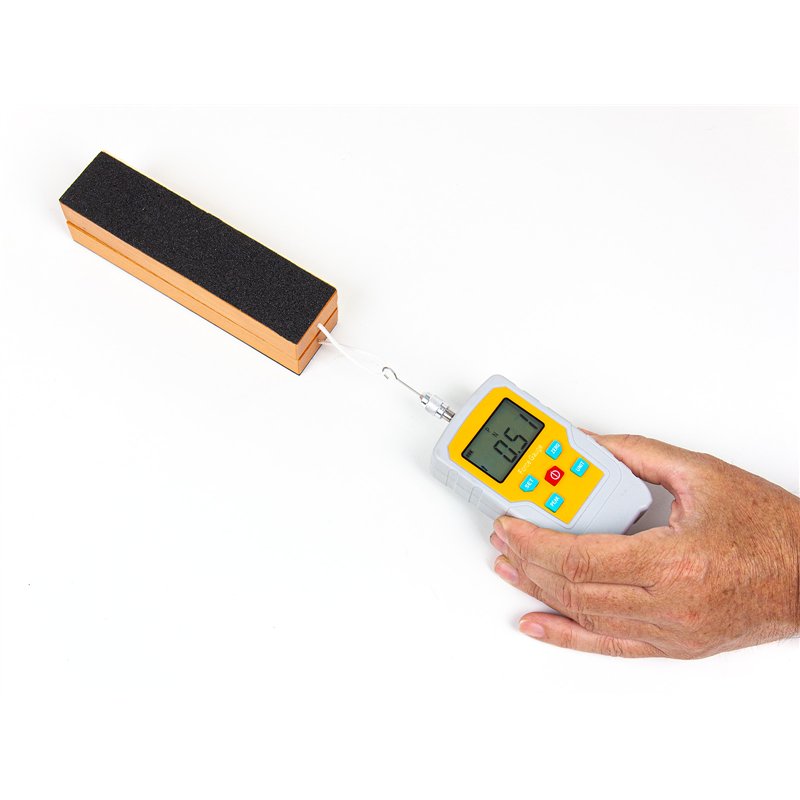

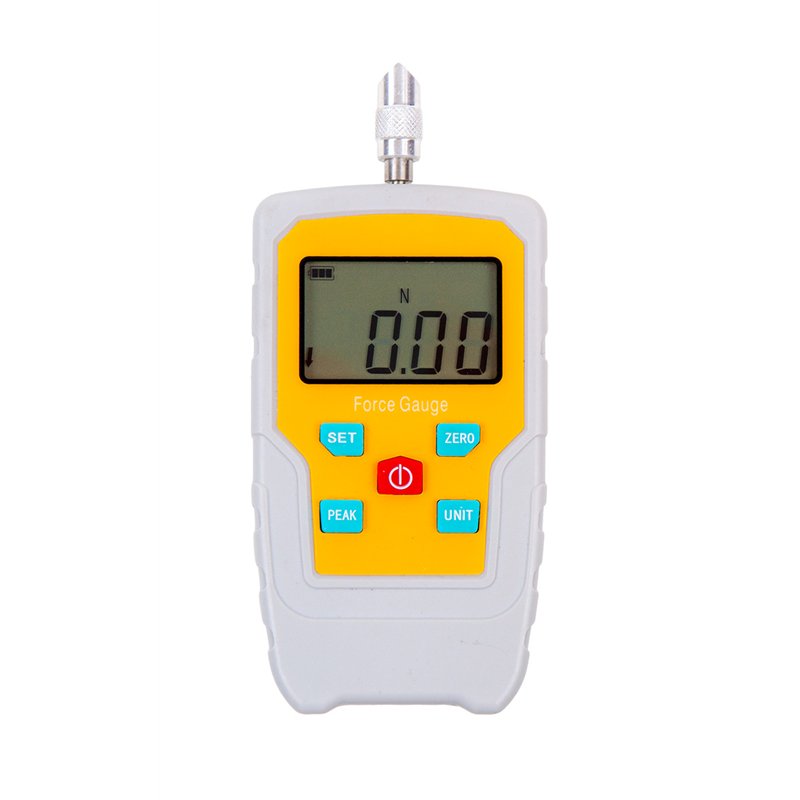

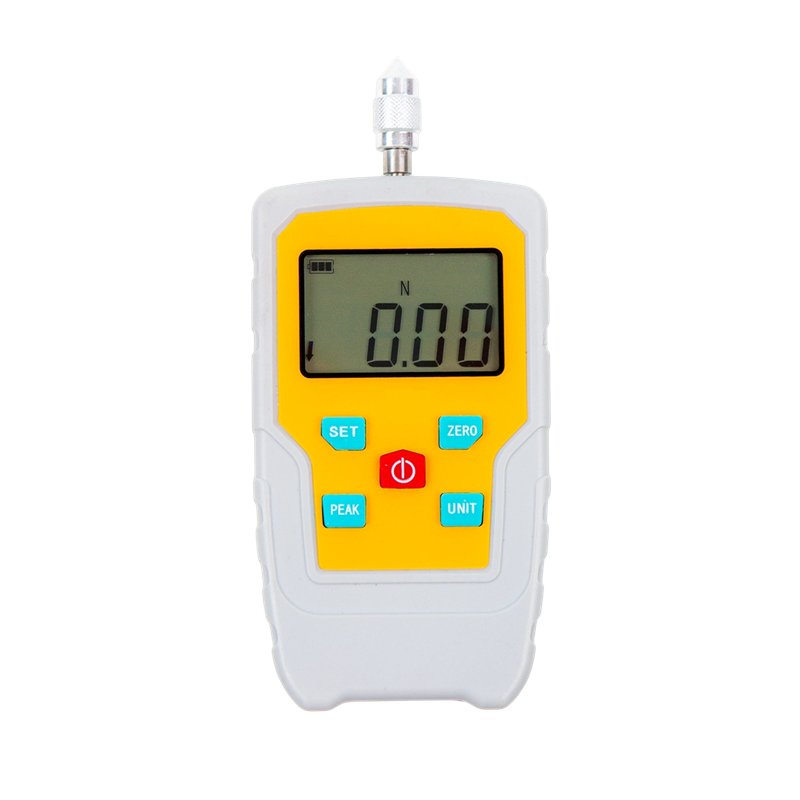

A handy and multifunctional digital measuring device for the precise measurement of forces (Newtons) or masses (kilograms, pounds or ounces). Both tensile and compressive forces can be measured with a minimal displacement yet with high precision. The device is very easy to use, yet offers a high sampling rate and excellent resolution across a wide measuring range. Zero adjustment (tare) is carried out at the touch of a button.

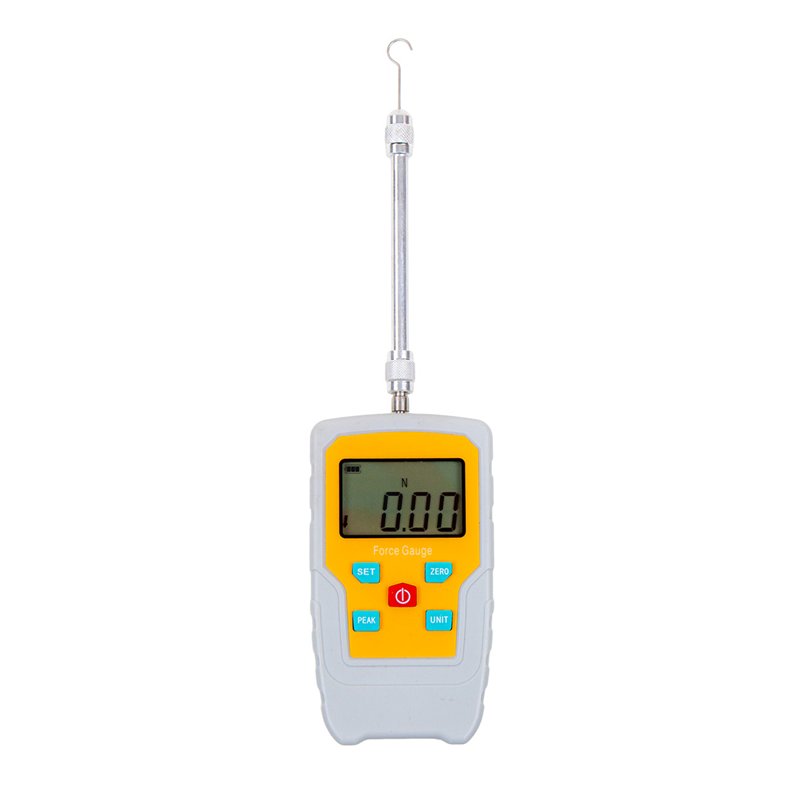

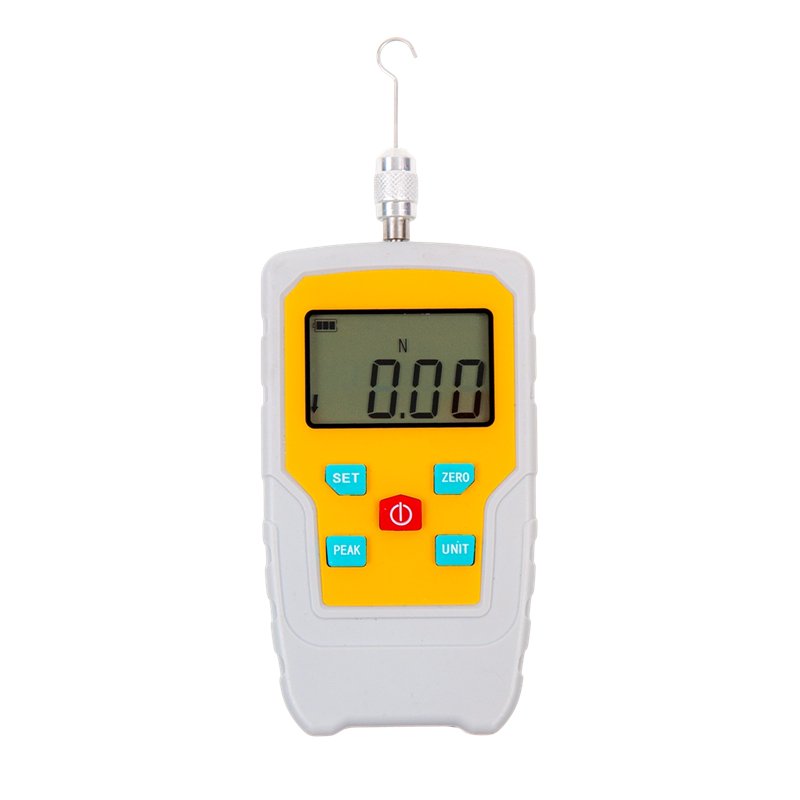

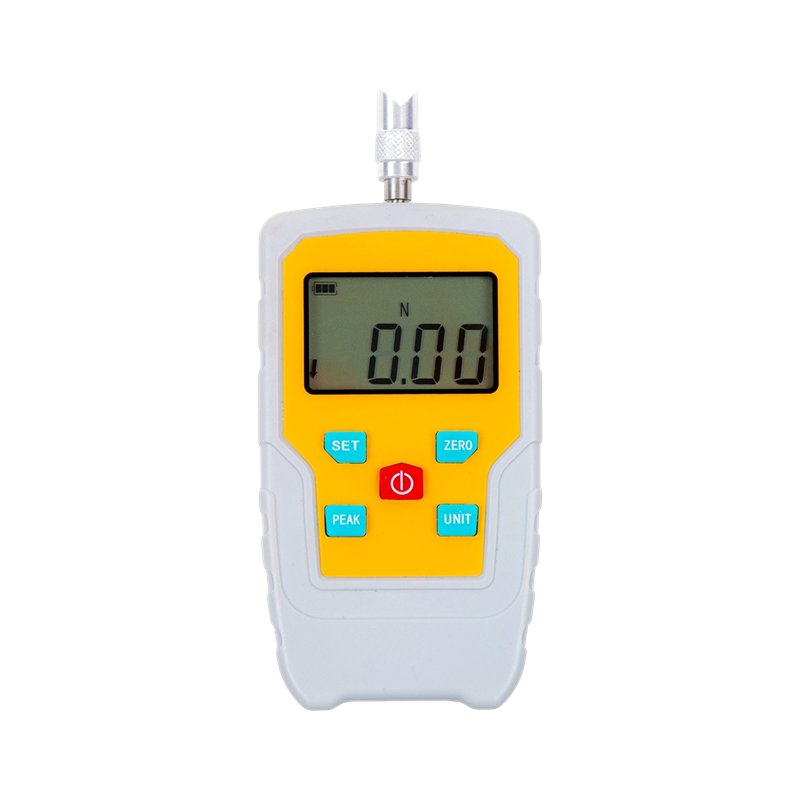

Measuring arm with a threaded connection for attaching various measuring heads (plate, tip, blade, notch, rotating hook) or an extension arm. These parts are included in the scope of delivery.
To optimise measurement accuracy, the exact gravitational acceleration at the site of use can be entered. Upper and lower limits can be set for statistical analysis. The buzzer sounds an alarm if the limits are exceeded. Function for masking minimum values: data within the specified minimum range can be masked.
Technical data:
“UNIT”, measurement units: N (Newton), kg (kilogram), lb (pound), oz (ounce)

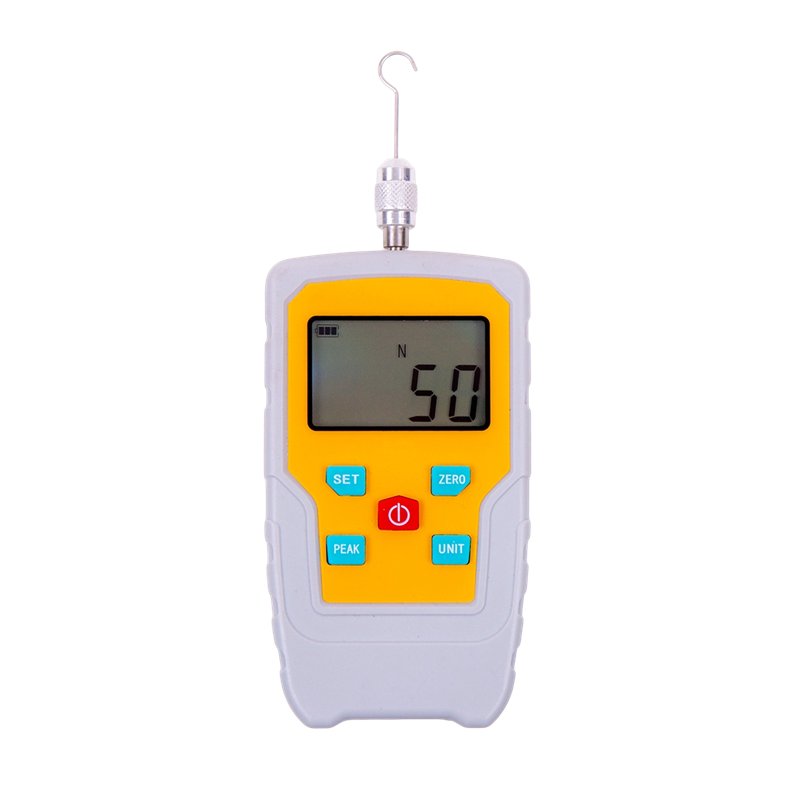

“N” measurement range: +/- 50 N, resolution: 0.01 N
“kg” measurement range: +/- 5 kg, resolution: 0.001 kg
Measuring range “lb”: +/- 11 lb, resolution: 0.01 lb
Measuring range “oz”: +/- 180 oz, resolution: 0.1 oz
Accuracy: +/- 1%

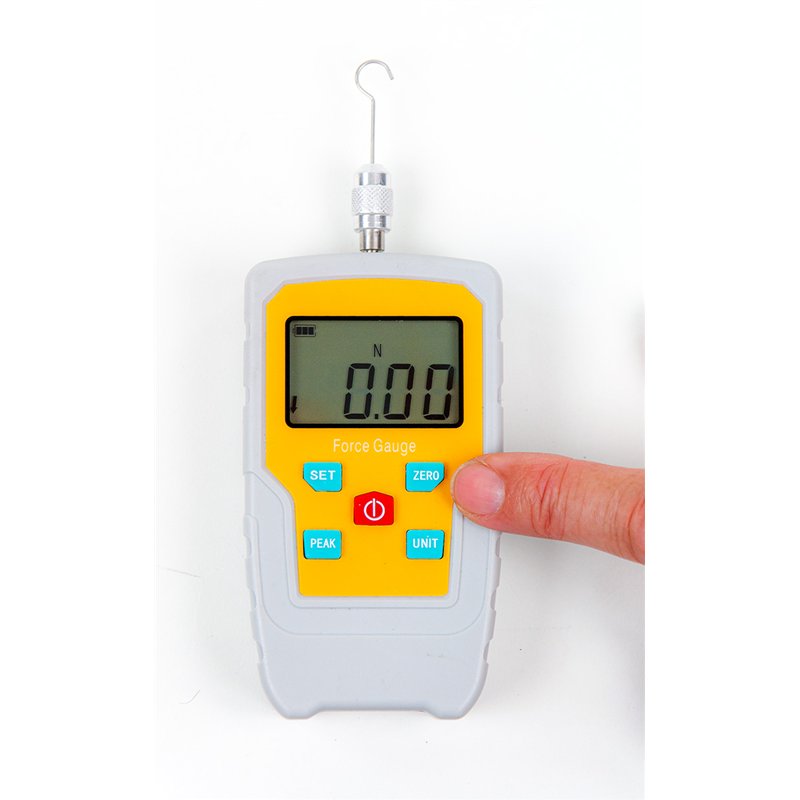

“ZERO”: Zero adjustment (tare)
3 measuring modes: Real-time, peak value, first peak value
Automatic switch-off
Automatic backlight
On/off switch
Buzzer – alarm function
LCD display: 40 x 25 mm
Measurement value display (H=13 mm)

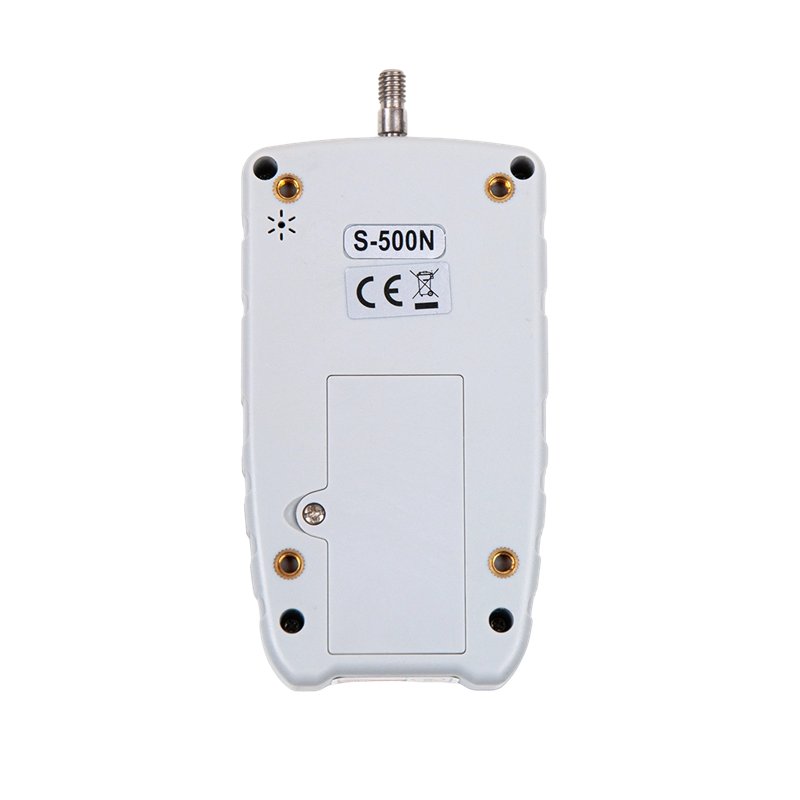

Power supply: 2 x 1.5 V AAA batteries (included)

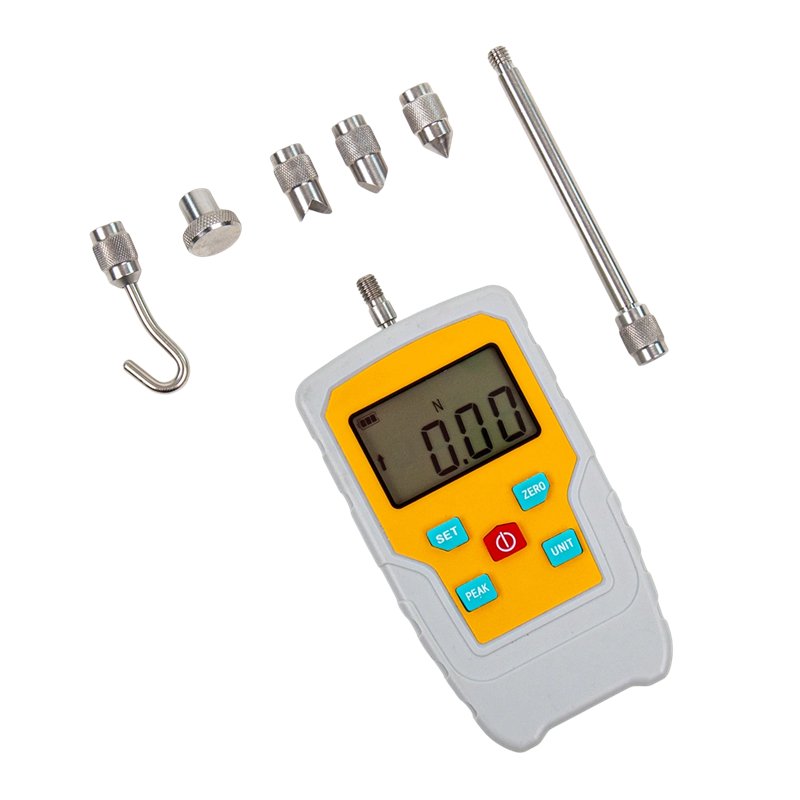

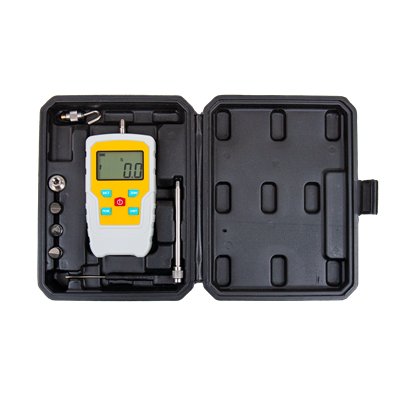

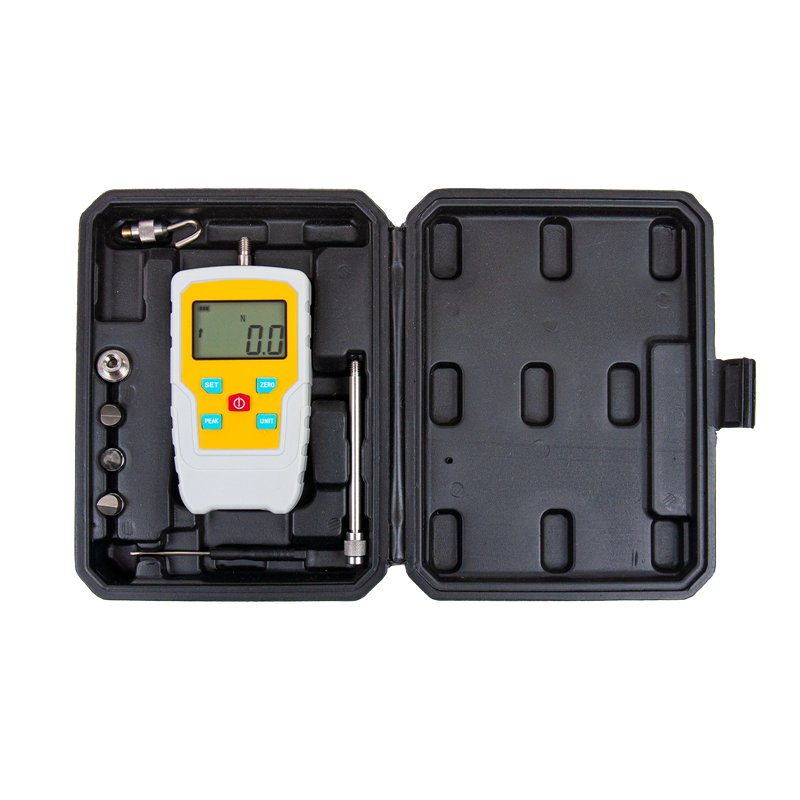

Contents: Measuring device, 5 different measuring heads, extension arm, 4 screws for base plate, technical instructions, custom-shaped storage case with lid
Dimensions: 108 (124) x 60 x 31 mm
Weight: approx. 206 g (with batteries)
Also recommended:

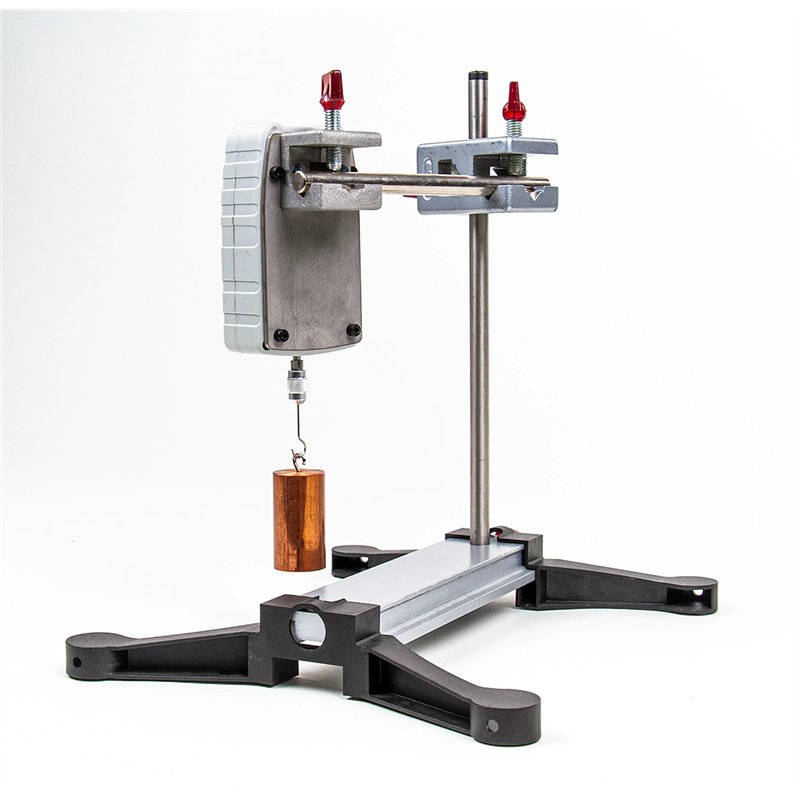

DM133-1X Base plate with sleeve for digital force gauge
