For observing rapid periodic movements and for contactless speed measurement;

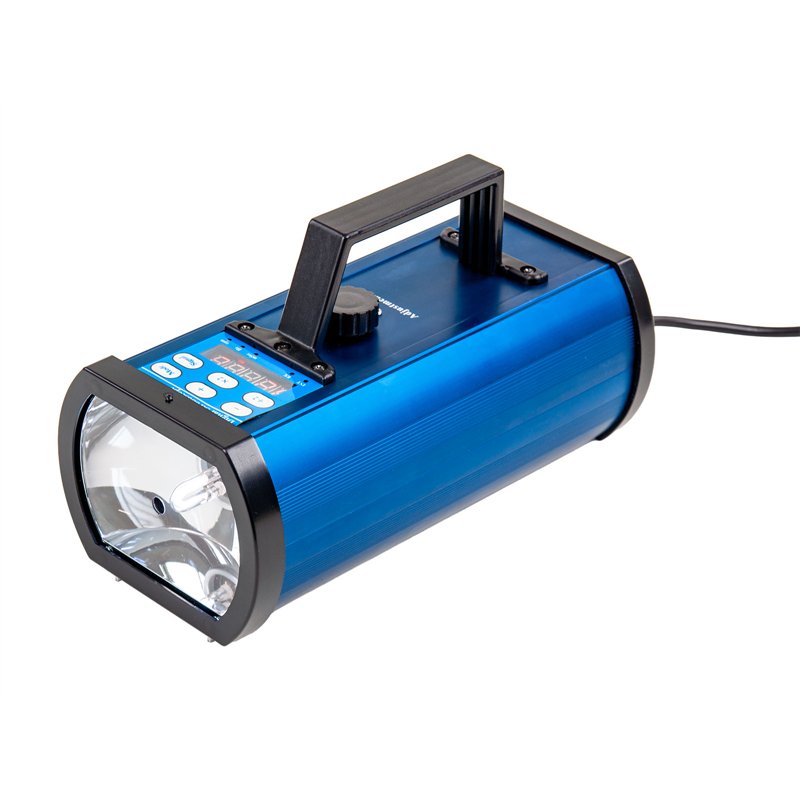

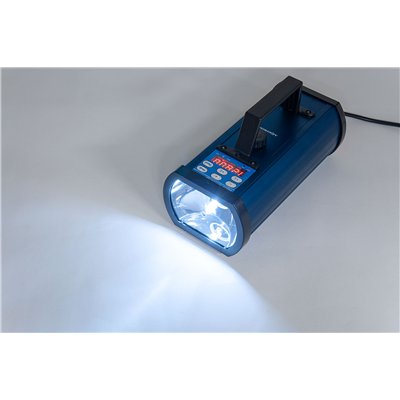

A powerful and light-intensive xenon flash tube makes this stroboscope a particularly attractive and effective laboratory device. The wide range and highly accurate flash frequency adjustment options make experimentation very easy and quick. The robust metal housing and ergonomically designed carrying handle ensure high stability and comfortable handling.

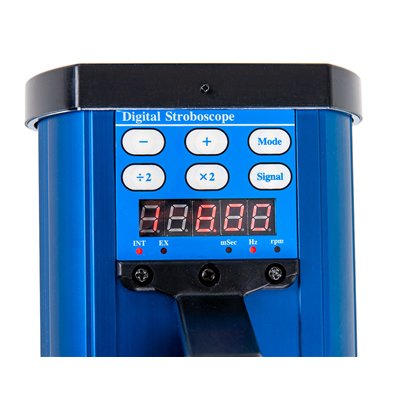

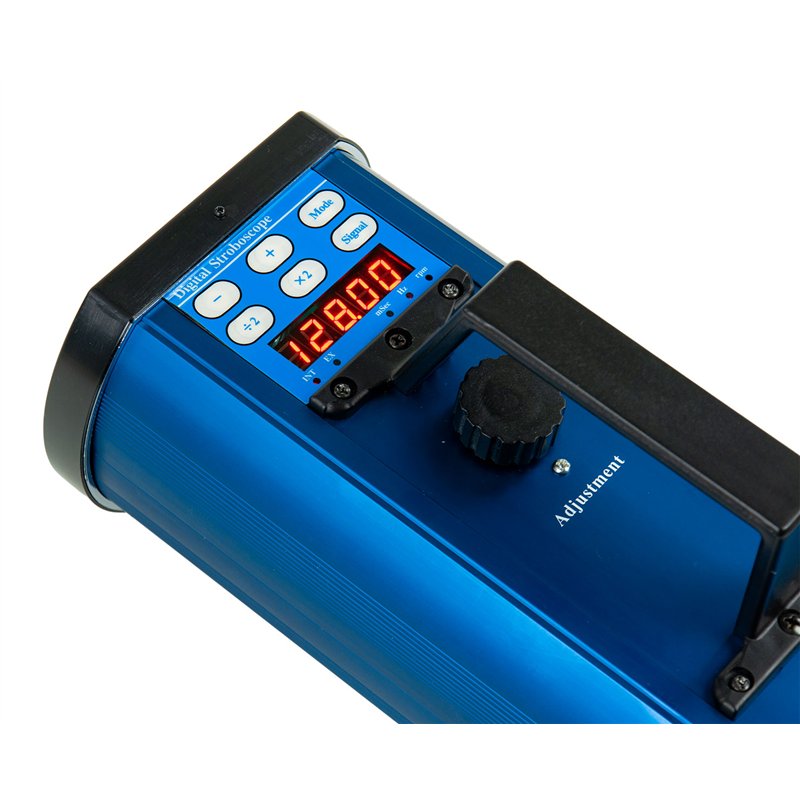

5-digit LED display, digit height: 10 mm
6 soft-touch buttons for:
Various display options for the flash frequency:
Hz: Flashes per second
rpm (fpm): Flashes per minute
mSec: Milliseconds
- additional fine adjustment in 1-digit increments,
- doubling or halving of the frequency

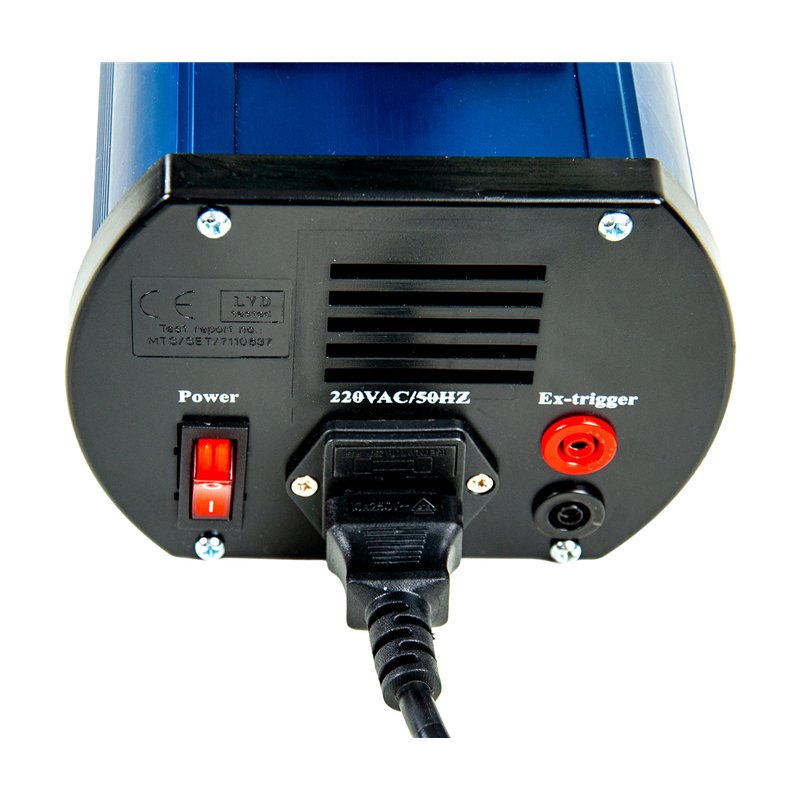

- external triggering via two 4 mm safety sockets
Flash frequency: 1–250 Hz, continuously adjustable with quick-set knob
Flash tube: Xenon
Flash tube power: 6 W
Light intensity in lux, measured at a distance of 50 cm from the light source:
50 Hz 220 Lux
100 Hz 360 Lux
150 Hz 250 Lux
200 Hz 160 Lux
250 Hz 180 Lux
The light intensities change at the following frequencies: 110 Hz and 170 Hz.

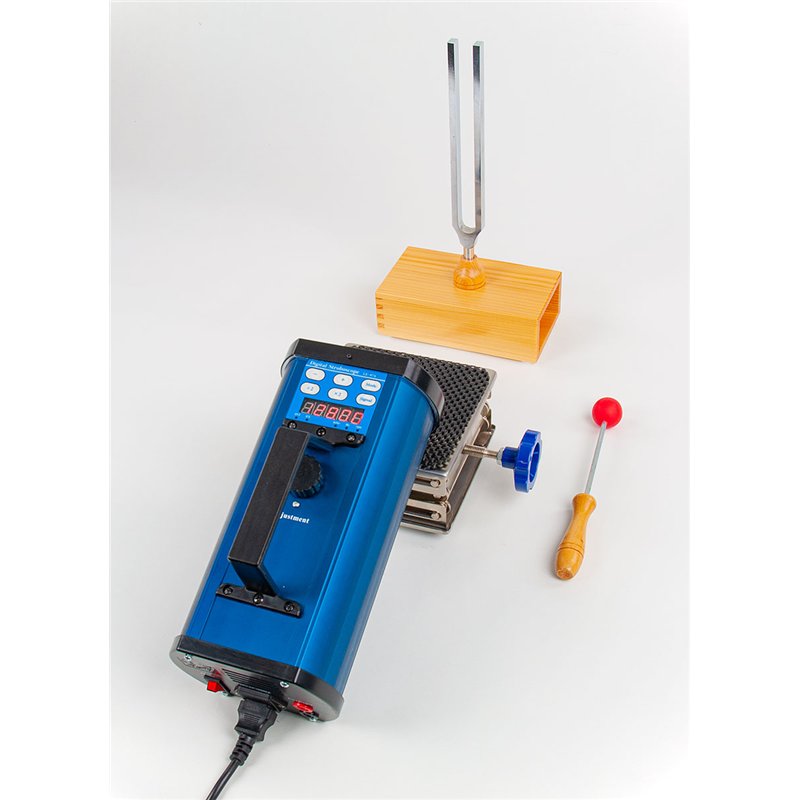

Experiments:
Tongue frequency meter
Sound generation with a tuning fork
Dimensions: 270 x 135 x 105 (155) mm
Weight: approx. 1460 g
Connection voltage: 220 - 230 V/50 - 60 Hz
