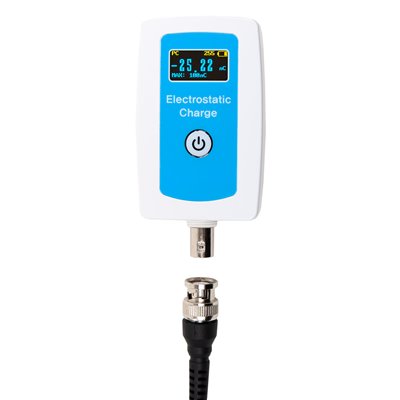

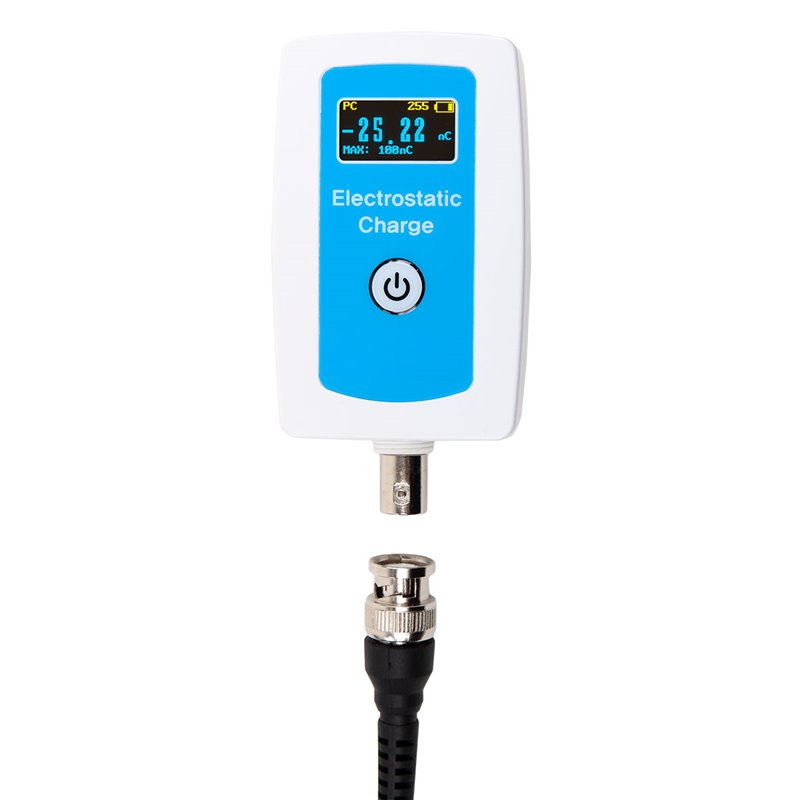

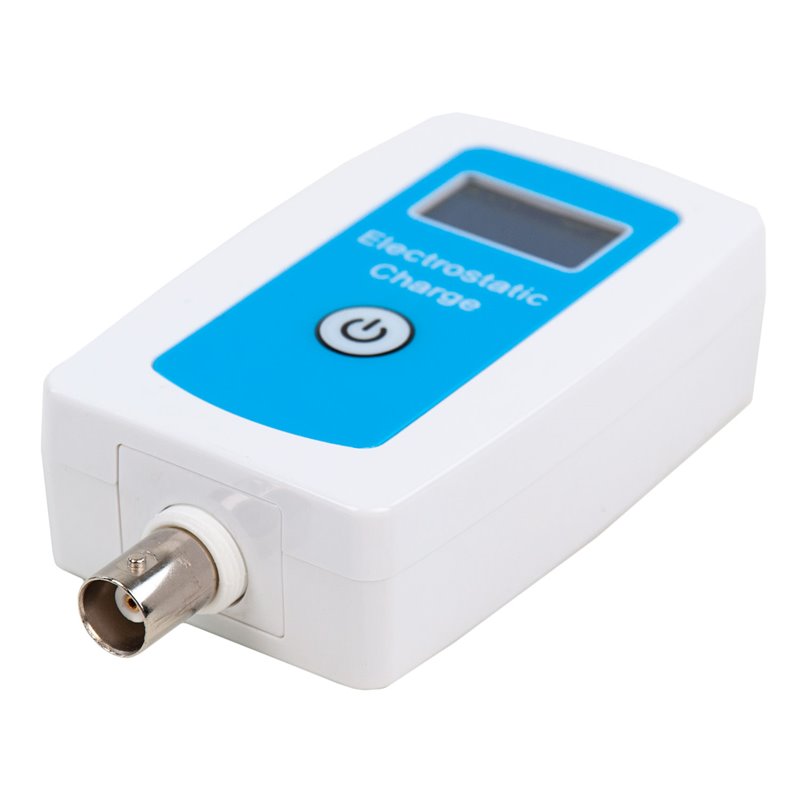

Sensor WLD, electrostatic charge, -/+ 5/20/100 nC

Wireless sensor for NAWI with display (WLD = wireless sensor with display).

Thanks to its integrated colour display, this WLD sensor is also a standalone digital measuring device. Simple measurements therefore take only a few seconds.

The display shows the following parameters:
.) Measuerment value
.) Unit of measurement
.) Connection status (mobile or PC)
.) Sensor ID
.) Battery capacity and charge status

Of course, this WLD-SMART sensor can also be used wirelessly via Bluetooth or wired via USB with the free "Science#" app on mobile devices such as tablets or iPads (Android or iOS) or computers (Windows or Mac).

A single button press is all it takes to display other measured values (only for sensors with multiple measuring ranges or multiple built-in sensor types) or to calibrate sensors.
Up to 4 sensors can be used simultaneously in BT mode.
Display: 0.96" OLED colour display (128 x 64 pixels)
Power supply: Li-poly battery (3.7 V 700 mAh)
Operating time 4 to 22 hours with a fully charged battery (depending on conditions of use)
Connection: Bluetooth 5.0 Low Energy (BLE) (Mac, Android, iOS) - and Bluetooth 2.1 Classic (Windows)
USB 2.0 (Type C)

Delivery includes USB-C cable for charging the battery, data transfer or wired measurement for a higher sampling rate.

For measuring electrostatic charges (electronic electroscope) and the polarity of the charge.

- Induction charging
- Charge production and distribution
- Charge on capacitor

Measuring range: ±0,5 V (±5 nC)  /  ±2 V (±20 nC)  /  ±10 V (±100 nC)
Resolution: 0,01 nC
Input voltage: 150 V max.
Maximum sampling rate: 100 Hz
Housing dimensions: 80 x 50 x 25 mm
Cable length: 300 mm

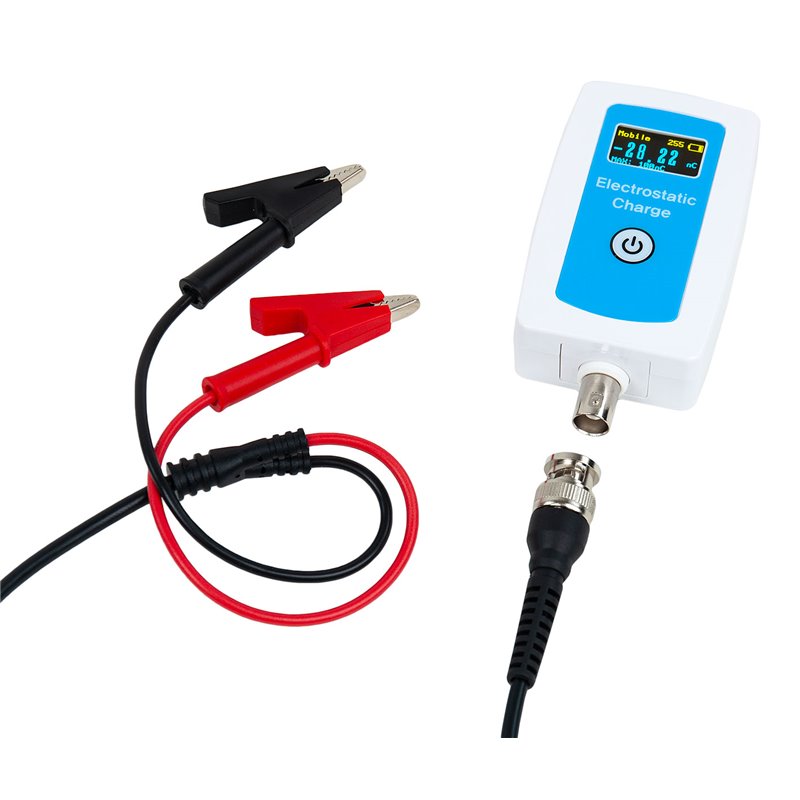

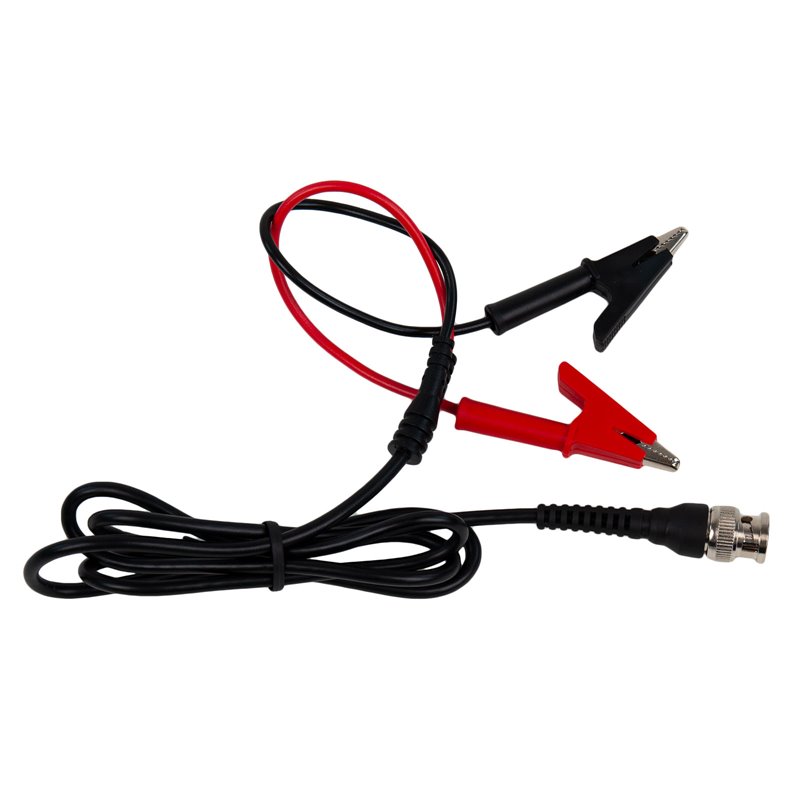

Delivery with cable and crocodile clamps
