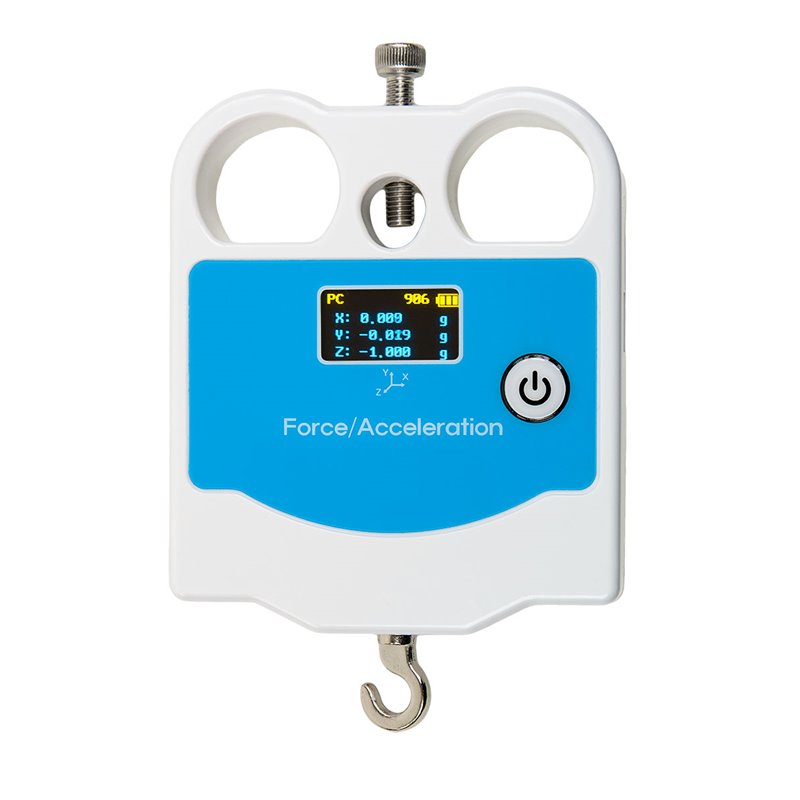

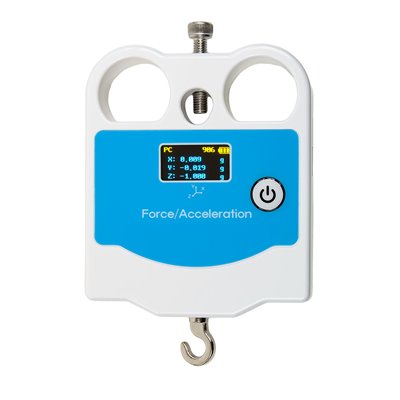

Sensor WLD, force and acceleration, -/+ 80 N, -/+ 16 g

Wireless sensor for NAWI with display (WLD = wireless sensor with display).

Thanks to its integrated colour display, this WLD sensor is also a standalone digital measuring device. Simple measurements therefore take only a few seconds.

The display shows the following parameters:
.) Measuerment value
.) Unit of measurement
.) Connection status (mobile or PC)
.) Sensor ID
.) Battery capacity and charge status

Of course, this WLD-SMART sensor can also be used wirelessly via Bluetooth or wired via USB with the free "Science#" app on mobile devices such as tablets or iPads (Android or iOS) or computers (Windows or Mac).

A single button press is all it takes to display other measured values (only for sensors with multiple measuring ranges or multiple built-in sensor types) or to calibrate sensors.
Up to 4 sensors can be used simultaneously in BT mode.
Display: 0.96" OLED colour display (128 x 64 pixels)
Power supply: Li-poly battery (3.7 V 700 mAh)
Operating time 4 to 22 hours with a fully charged battery (depending on conditions of use)
Connection: Bluetooth 5.0 Low Energy (BLE) (Mac, Android, iOS) - and Bluetooth 2.1 Classic (Windows)
USB 2.0 (Type C)

Delivery includes USB-C cable for charging the battery, data transfer or wired measurement for a higher sampling rate.

For simultaneous measurement of force and acceleration.

- Hooke's law
- Friction
- Stimulus and response
- Buoyancy
- Impact and momentum

Measuring range: -80 … +80 N   /   -16 ... +16 g (x, y and z)
Resolution: 0,01 N / 0,01 g   /   0,1 N (display)
Accuracy: ±0,5N / ±0,08 g
Maximum sampling rate: BT: 100 Hz, USB: 1000 Hz
Sensor dimensions: 89 x 74 x 21 mm

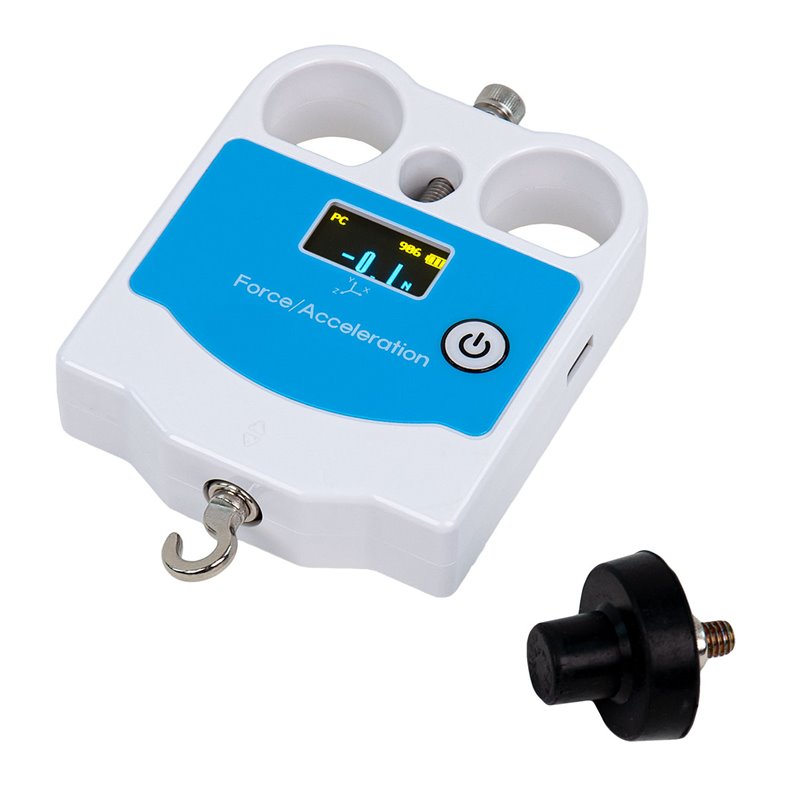

Delivery with hooks and buffers
