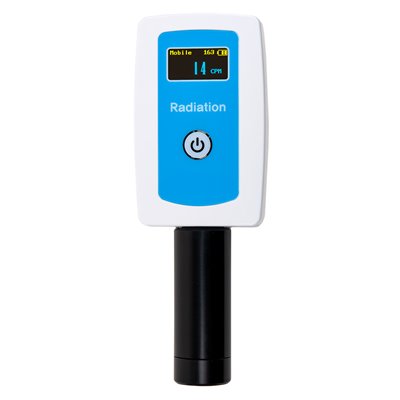

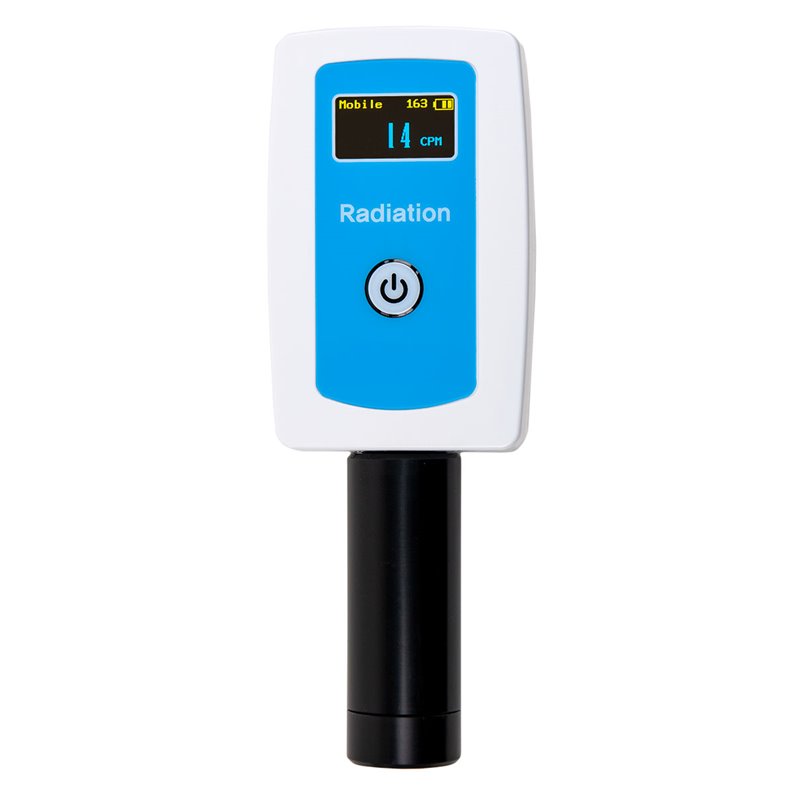

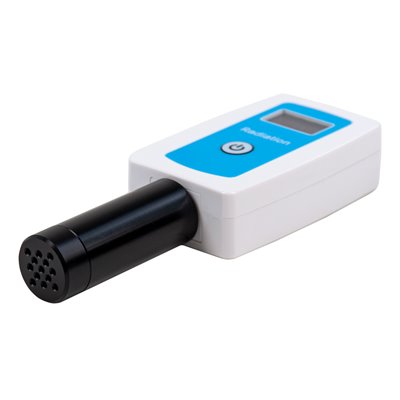

Sensor WLD, radioactive radiation, 20000 cpm, 200 µS/h, 20 mR/hr

Wireless sensor for NAWI with display (WLD = wireless sensor with display).

Thanks to its integrated colour display, this WLD sensor is also a standalone digital measuring device. Simple measurements therefore take only a few seconds.

The display shows the following parameters:
.) Measuerment value
.) Unit of measurement
.) Connection status (mobile or PC)
.) Sensor ID
.) Battery capacity and charge status

Of course, this WLD-SMART sensor can also be used wirelessly via Bluetooth or wired via USB with the free "Science#" app on mobile devices such as tablets or iPads (Android or iOS) or computers (Windows or Mac).

A single button press is all it takes to display other measured values (only for sensors with multiple measuring ranges or multiple built-in sensor types) or to calibrate sensors.
Up to 4 sensors can be used simultaneously in BT mode.
Display: 0.96" OLED colour display (128 x 64 pixels)
Power supply: Li-poly battery (3.7 V 700 mAh)
Operating time 4 to 22 hours with a fully charged battery (depending on conditions of use)
Connection: Bluetooth 5.0 Low Energy (BLE) (Mac, Android, iOS) - and Bluetooth 2.1 Classic (Windows)
USB 2.0 (Type C)

Delivery includes USB-C cable for charging the battery, data transfer or wired measurement for a higher sampling rate.

For the detection and quantitative determination of ionising radiation.
Alpha, beta and gamma rays can be detected.

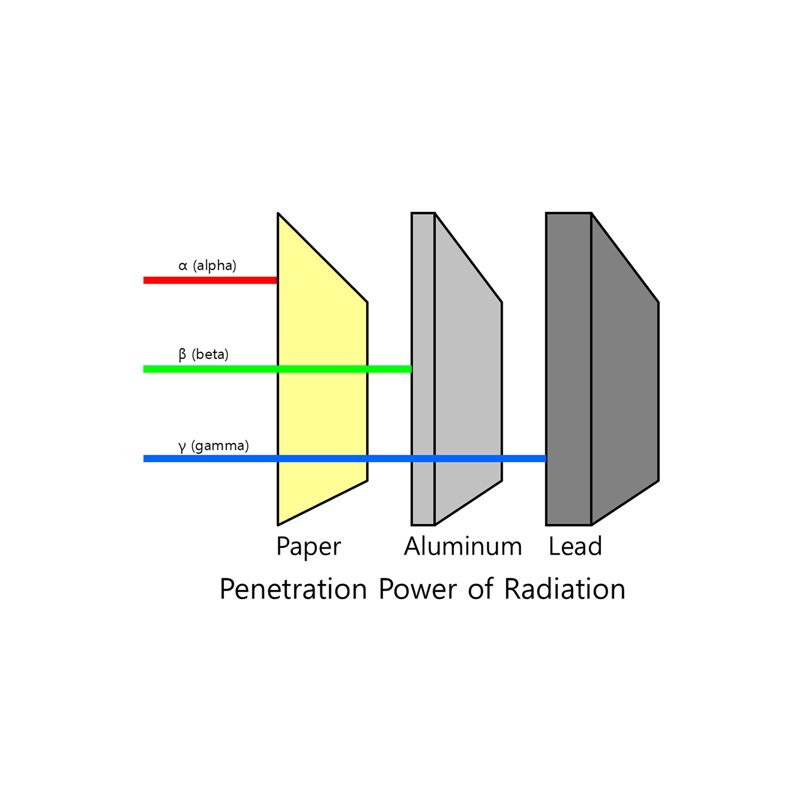

- Range of different types of radiation
- Absorption of different types of radiation
- Radiation exposure, layer thickness measurement, backscattering

Measuring range: 0 … 20 000 CPM   /   0 ... 20 mR/hr   /   0 ... 200 µSv/hr
Resolution: 1 CPM
Maximum sampling rate: 100 Hz
GM counting tube diameter: 9 mm (eff)
Housing dimensions: 139 x 50 x 25 mm
Probe dimensions: 22 x 59 mm
