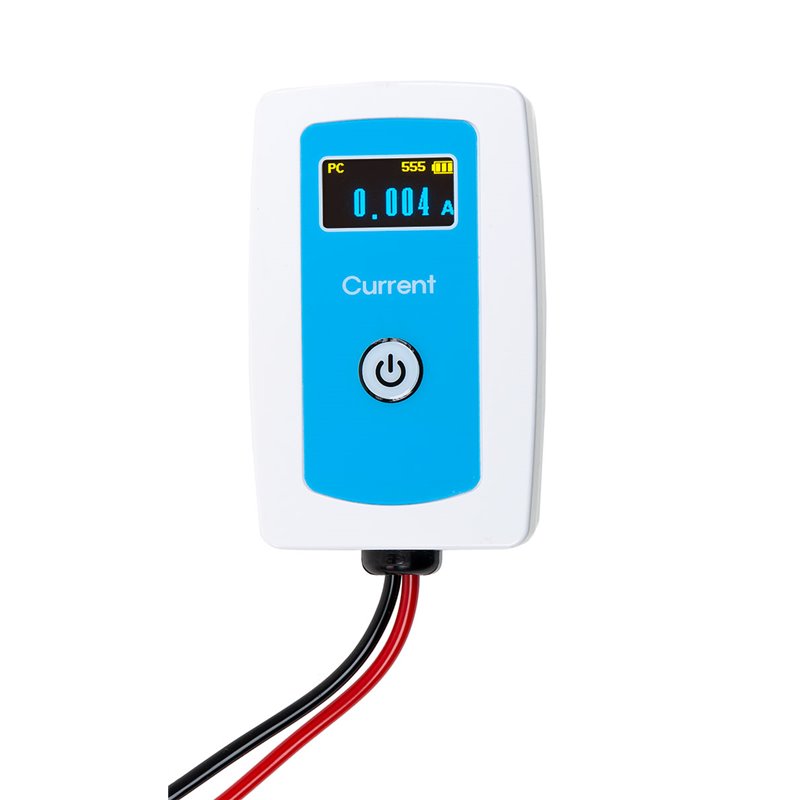

Sensor WLD, current, -/+ 3 A (diff)

Wireless sensor for NAWI with display (WLD = wireless sensor with display).

Thanks to its integrated colour display, this WLD sensor is also a standalone digital measuring device. Simple measurements therefore take only a few seconds.

The display shows the following parameters:
.) Measuerment value
.) Unit of measurement
.) Connection status (mobile or PC)
.) Sensor ID
.) Battery capacity and charge status

Of course, this WLD-SMART sensor can also be used wirelessly via Bluetooth or wired via USB with the free "Science#" app on mobile devices such as tablets or iPads (Android or iOS) or computers (Windows or Mac).

A single button press is all it takes to display other measured values (only for sensors with multiple measuring ranges or multiple built-in sensor types) or to calibrate sensors.
Up to 4 sensors can be used simultaneously in BT mode.
Display: 0.96" OLED colour display (128 x 64 pixels)
Power supply: Li-poly battery (3.7 V 700 mAh)
Operating time 4 to 22 hours with a fully charged battery (depending on conditions of use)
Connection: Bluetooth 5.0 Low Energy (BLE) (Mac, Android, iOS) - and Bluetooth 2.1 Classic (Windows)
USB 2.0 (Type C)

Delivery includes USB-C cable for charging the battery, data transfer or wired measurement for a higher sampling rate.

For measuring direct currents. Connection via two cables with crocodile clips.

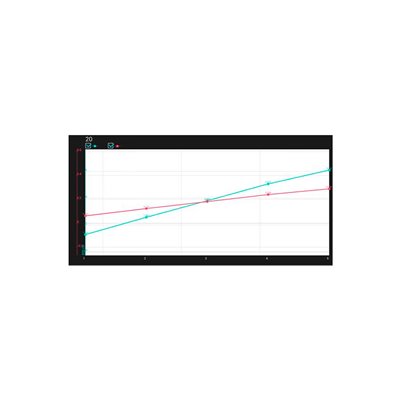

- Ohm's law (relationship between voltage and current)
- Charging and discharging of a condenser
- Current measurement with a coin cell battery
- Dependence of resistance on the length and cross-sectional area of a conductive core

Measuring range: -3 … +3 A (diff.)
Resolution: 0,001 A
Sensitivity: ± 10 mA (typ.)
Maximum sampling rate: BT: 100 Hz, USB: 1000 Hz
Sensor dimensions: 80 x 50 x 25 mm
Measuring cable: L = approx. 300 mm
